E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

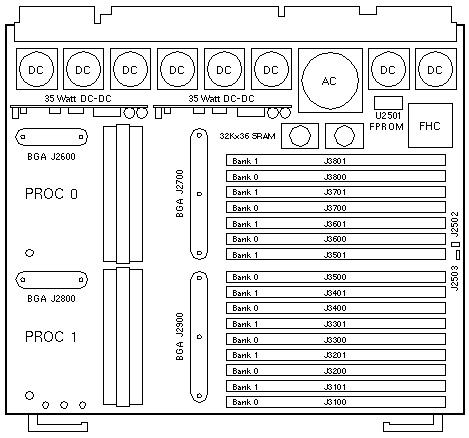

CPU/Memory Board

Option 2600

501-2976
0MB FRU w/o Module
83MHz Gigaplane

Backpanel

Jumper Settings

JUMPER PINS SETTING DESCRIPTION FAB 270-2976
J2502 1-2 Out Inv Adr 1 -01 -02 -03 -04
J2503 1-2 In
-01 -02

Notes

  1. The minimum OS for the Ex000 is Solaris 2.5.1.
  2. The minimum OS for the Ex500 is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  3. OBP >=3.2v14 is required when 83MHz and 100MHz boards are mixed.
  4. OBP >=3.2v23 is required when 256MB DIMMs are installed.
  5. The message "status `fail - Downrev AC' " is displayed when CPU Board <501-2976-03 is installed. The message indicates that the Address Controller is pre-FCS and lower than revision 5.

Compatibility Notes

  1. The 501-2976 was shipped in the E3000 - E6000.
  2. The 501-2976 was not shipped in the E3500 - E6500.
  3. The 501-2976 is supported in the E3000 - E6000 and E3500 - E6500.

Flash PROM Notes

  1. Use the Flash PROM Programming Utility to update the flash PROM.
  2. Use the prom-copy (src dst -) command to copy a flash PROM.
    ok 2 b prom-copy (copies from board 2 to board 11)
  3. Use the update-proms command to synchronize the latest version of flash PROM installed in the system to all boards of the same type.

Module Notes

  1. The 501-2976 supports up to 2MB of cache per module. If modules with greater than 2MB are installed, only 2MB will be addressed.
  2. The 250MHz 1MB module requires OBP 3.2 Version 6.
  3. The 250MHz 4MB module requires OBP 3.2 Version 7.
  4. The 336MHz 4MB module requires OBP 3.2 Version 12.
  5. The 400MHz 4MB module is not supported.
  6. The 400MHz 8MB module requires OBP 3.2 Version 21.

References

  1. Ultra Enterprise 3000 System Manual, 802-6051.
  2. Ultra Enterprise 4000/5000/6000 System Manual, 802-3845.
  3. System Flash PROM Programming Guide, 802-5579.

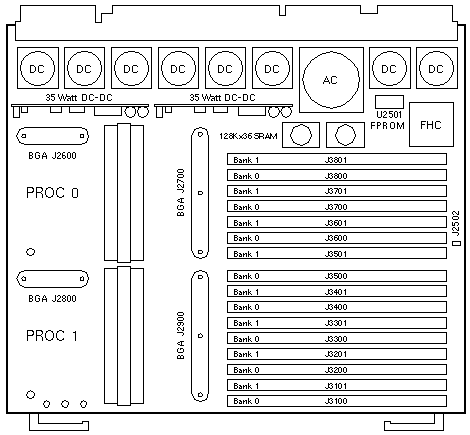

E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

CPU/Memory Board

Option 2601

501-4312
0MB FRU w/o Module
83MHz Gigaplane

Backpanel

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J2502 1-2 Out Inv Adr 1

Notes

  1. The minimum OS for the Ex000 is Solaris 2.5.1.
  2. The minimum OS for the Ex500 is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  3. The first OBP release for the 501-4312 was 3.2 Version 7.
  4. OBP >=3.2v14 is required when 83MHz and 100MHz boards are mixed.
  5. OBP >=3.2v23 is required when 256MB DIMMs are installed.

Compatibility Notes

  1. The 501-4312 was shipped in the E3000 - E6000.
  2. The 501-4312 was not shipped in the E3500 - E6500.
  3. The 501-4312 is supported in the E3000 - E6000 and E3500 - E6500.

Flash PROM Notes

  1. Use the Flash PROM Programming Utility to update the flash PROM.
  2. Use the prom-copy (src dst -) command to copy a flash PROM.
    ok 2 b prom-copy (copies from board 2 to board 11)
  3. Use the update-proms command to synchronize the latest version of flash PROM installed in the system to all boards of the same type.

Module Notes

  1. The 501-4312 supports up to 8MB of cache per module.
  2. The 250MHz 2MB module requires OBP 3.2 Version 6.
  3. The 250MHz 4MB module requires OBP 3.2 Version 7.
  4. The 336MHz 4MB module requires OBP 3.2 Version 12.
  5. The 400MHz 4MB module is not supported.
  6. The 400MHz 8MB module requires OBP 3.2 Version 21.

References

  1. Ultra Enterprise 3000 System Manual, 802-6051.
  2. Ultra Enterprise 4000/5000/6000 System Manual, 802-3845.
  3. System Flash PROM Programming Guide, 802-5579.



E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

CPU/Memory Board

Option 2602

501-4882
0MB FRU w/o Module
83/90/100MHz Gigaplane

Backpanel

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J2502 1-2 Out Inv Adr 1

Configured CPU/Memory FRUs

PART # DESCRIPTION MODULE #
540-4516 0MB FRU with 2 400MHz Modules 501-5762
540-4517 0MB FRU with 2 400MHz Modules 501-5661
540-4575 2GB FRU with 2 400MHz Modules 501-5762
540-4732 0MB FRU with 2 400MHz Modules 501-5838
540-4867 2GB FRU with 2 400MHz Modules 501-5838
540-4893 2GB FRU with 2 400MHz Modules 501-6009
540-4894 0MB FRU with 2 400MHz Modules 501-6009
540-4955 0MB FRU with 1 400MHz Module 501-5838
540-4956 0MB FRU with 1 400MHz Module 501-6009
540-5396 0MB FRU with 2 400MHz Modules 501-5815
540-5397 2GB FRU with 2 400MHz Modules 501-5815
540-5400 0MB FRU with 1 400MHz Module 501-5815

Notes

  1. The minimum OS for the Ex000 is Solaris 2.5.1.
  2. The minimum OS for the Ex500 is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  3. The first release of OBP for the 501-4882 was 3.2 Version 12.
  4. The oldest supported release of OBP for the 501-4882 is 3.2v14.
  5. OBP 3.2v14 is required when 83MHz and 100MHz boards are mixed.

Compatibility Notes

  1. The 501-4882 was shipped in the E3500 - E6500.
  2. The 501-4882 was not shipped in the E3000 - E6000.
  3. The 501-4882 is supported in the E3000 - E6000 and E3500 - E6500.

Flash PROM Notes

  1. Use the Flash PROM Programming Utility to update the flash PROM.
  2. Use the prom-copy (src dst -) command to copy a flash PROM.
    ok 2 b prom-copy (copies from board 2 to board 11)
  3. Use the update-proms command to synchronize the latest version of flash PROM installed in the system to all boards of the same type.

Module Notes

  1. The 400MHz 4MB module requires OBP 3.2 Version 18.
  2. The 400MHz 8MB module requires OBP 3.2 Version 21.
  3. The 464MHz 8MB module requires OBP 3.2 Version 29.

References

  1. Enterprise 3500 System Reference Manual, 805-2630.
  2. Enterprise 4500/5500/6500 System Reference Manual, 805-2632.
  3. System Flash PROM Programming Guide, 802-5579.
