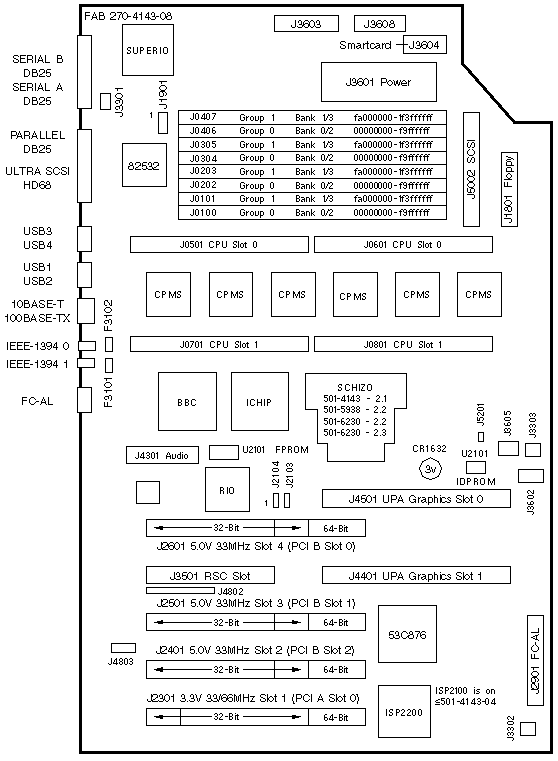

Sun Blade 1000/2000 / Sun Fire 280R / Netra 20
A28 / A29 / A35 / N28
| 501-4143 |
501-5938 |
501-6230 |
0MB FRU
270-4143-08
SCHIZO <=2.1 |
0MB FRU
270-4143-08
SCHIZO 2.2 |
0MB FRU
270-4143-11
SCHIZO >=2.2 |
Jumper Settings
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| J2103 |
1-2
2-3 |
In
In |
FPROM write protected
FPROM write enabled (default) |
| J2104 |
1-2
2-3 |
Out
In |
FPROM high half booting
FPROM low half booting (default) |
|
Miscellaneous Connectors
| CONNECTOR |
PINS |
DESCRIPTION |
| J1901 |
1-8 |
Serial test (factory use) |
| J3301 |
1-2 |
DIMM Fan Power |
| J3302 |
1-2 |
Graphics and PCI Fan Power |
| J3303 |
1-2 |
CPU Fan Power |
| J3601 |
1-28 |
Power supply +3.3V and +5V |
| J3602 |
1-8 |
Interlock, LED, speaker, and power switch |
| J3603 |
1-14 |
Power supply sense |
| J3605 |
1-6 |
Glow Logo LED |
| J3608 |
1-10 |
DC power to internal peripherals |
| J4802 |
1-38 |
ROMBO (factory use) |
| J4803 |
1-8 |
JSCC (factory use) |
| J5201 |
1-2 |
Logic Analyzer Clock |
| J5202 |
1-2 |
Logic Analyzer Clock |

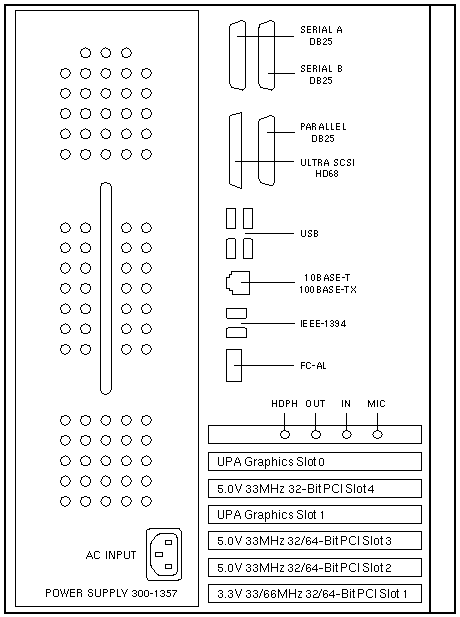

Rear View
PCI Slot Numbering
| SLOT |
BUS |
DEVICE TREE |
| 4 |
B |
pci@8,700000/*@1,* |
| 3 |
B |
pci@8,700000/*@2,* |
| 2 |
B |
pci@8,700000/*@3,* |
| 1 |
A |
pci@8,600000/*@1,* |
PCI Bus A shares the address/data bus with the FC-AL device. PCI Bus B
shares the address/data bus with on-board Audio, Ethernet, Flash,
Floppy, IEEE 1394, Parallel, SCSI, Serial, and USB devices.
System Codenames
| System |
Codename |
| Sun Blade 1000 |
Excalibur |
| Sun Fire 280R |
Littleneck |
| Netra 20 |
Lightweight 2+ |
Notes
- The minimum Sun Blade 1000 operating system is Solaris 8 10/00.
- The minimum Sun Blade 2000 operating system is Solaris 8 2/02.
- The minimum Sun Fire 280R operating system is Solaris 8 1/01.
- The minimum Netra 20 operating system is Solaris 8 4/01.
- The system will not boot without a CPU module in Slot 0.
- The minimum memory requirement is four DIMMs in any group.
- Each group addresses 4GB memory.
- Memory slots (Jxxxx) map to same-numbered DIMMs (Uxxxx):
| Slot |
DIMM |
| J0407 |
U0407 |
| J0406 |
U0406 |
| J0305 |
U0305 |
| J0304 |
U0304 |
| J0203 |
U0203 |
| J0202 |
U0202 |
| J0101 |
U0101 |
| J0100 |
U0100 |
Compatibility Notes
- Sun Fire 280R is not compatible with 501-4143.
- Netra 20 was not tested with 501-4143.
- Netra 20 requires OBP 4.2 Version 4 and FIRE-I V1.2 (U2107).
- Netra 20 comes up as a Netra T4 with OBP 4.2 Version 4.
- OBP 4.2v4 and FIRE-I V1.2 are on 501-5938-07 and 501-6230-01.
OBP Notes
- The PROM contains Sun Blade 1000 and Sun Fire 280R OBP images.
- Sun Fire 280R and Netra 20 share the same OBP image.
- Sun Fire 280R requires a Remote System Control (RSC).
- Sun Fire 280R OBP is enabled when RSC is probed.
- Sun Blade 1000 OBP is enabled when RSC or Alarm are not probed.
- Netra 20 requires an Alarm Module and a System Configuration Card.
- Netra 20 uses the System Configuration Card MAC address and Hostid.
- Netra 20 Power Distribution Board includes an lm80 device.
- Netra 20 probes for SCCR, lm80, then Alarm during power-up.
UltraSPARC III Notes
- Mixing UltraSPARC III speeds in the Sun Blade 1000 is supported.
- Use torque tool 340-6091 or 340-6395 to install the UltraSPARC III.
Both are calibrated to 5.0 +/- 0.5 in/lbs (.565 Nm).
- The A28, A29, A35, and N28 systems include a torque tool.
UltraSPARC III Cu Notes
- Mixing UltraSPARC III Cu module speeds is not supported.
- Mixing UltraSPARC III and UltraSPARC III Cu modules is not supported.
- The 900MHz UltraSPARC III Cu requires OBP >=4.4 version 6.
- Changes to 501-6230-05 include FRUID SEEPROM 525-1897-02, OBP 4.5v10, and
removal of CR4201.
References
Sun Blade 1000 Service Manual, 805-4496.
-
Sun Fire 280R Service Manual, 806-4807.
-
Netra 20 Installation and User's Guide, 806-7334.
-
Netra 20 Service and System Reference Manual, 806-7336.
|
