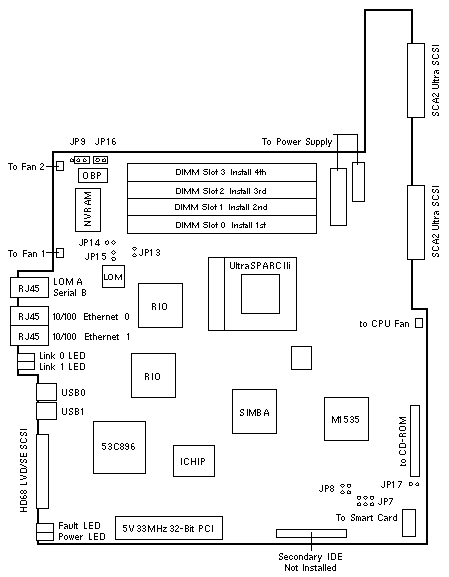

Sun Fire V120 / Netra 120
| 375-3064 |
375-3065 |
0MB FRU
550MHz US IIi
Sun Fire V120 |
0MB FRU
650MHz US IIi
Netra 120
Sun Fire V120 |
Jumper Settings
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| JP8 |
1-2
2-3 |
In
In |
Select Netra 120 OBP banner
Select Sun Fire V120 OBP banner |
| JP9 |
1-2
2-3 |
In
In |
Select Flash PROM (default)
Select ROMBO |
| JP13 |
1-2
1-2 |
Out
In |
Normal LOMlite2 operation (default)
Reset LOMlite2 |
| JP14 |
1-2
1-2 |
Out
In |
Normal LOMlite2 operation (default)
Bypass LOMlite2 |
| JP15 |
1-2
1-2 |
Out
In |
Normal LOMlite2 flash (default)
LOMlite2 flash recovery |
| JP16 |
1-2
1-2 |
Out
In |
OBP write protected
OBP write enabled (default) |
| JP17 |
1-2 |
Out |
CD-ROM set as Master ATA device |
JP7 Speed Select Jumper Settings
| 1-2 |
3-4 |
5-6 |
DESCRIPTION
(Codename = Phantom)
|
| Out |
In |
Out |
650MHz UltraSPARC IIi |
| Out |
Out |
In |
550MHz UltraSPARC IIi |
Notes
- The minimum operating system is Solaris 8 10/01.
- The hostid, MAC address, and OBP environment settings are stored
on System Configuration Smart Card 370-4285.
- The 375-3064 and 375-3065 are based on the Netra T1 System Board with
faster CPU, updated OBP and LOM firmware, and JP8 installed.
- There is no Netra 120 or Sun Fire V120 UltraSPARC IIi FRU.
Memory Notes
- The minimum memory requirement is one DIMM in Slot 0.
- The memory installation sequence is Slot 0, 1, 2, and 3.
- Each DIMM slot addresses 1GB with >=550MHz UltraSPARC IIi.
- When equal size DIMMs are installed, the lowest slot number is
mapped to the lowest address range.
- When mixed size DIMMs are installed, the slot number with the
largest size DIMM is mapped to the lowest address range.
UltraSPARC IIi Notes
- The 650MHz UltraSPARC IIi is similar to the 270-440MHz UltraSPARC IIi.
Differences include integrated L2 Cache and SDRAM Memory Control.
- The 650MHz UltraSPARC IIi is based on the 500MHz UltraSPARC IIe.
- The 650MHz UltraSPARC IIi OBP and OS name is UltraSPARC IIe.
References
-
Sun Fire V120 and Netra 120 Server User's Guide, 816-2090.
-
Sun Fire V120 and Netra 120 Server Product Notes, 816-2093.
|
