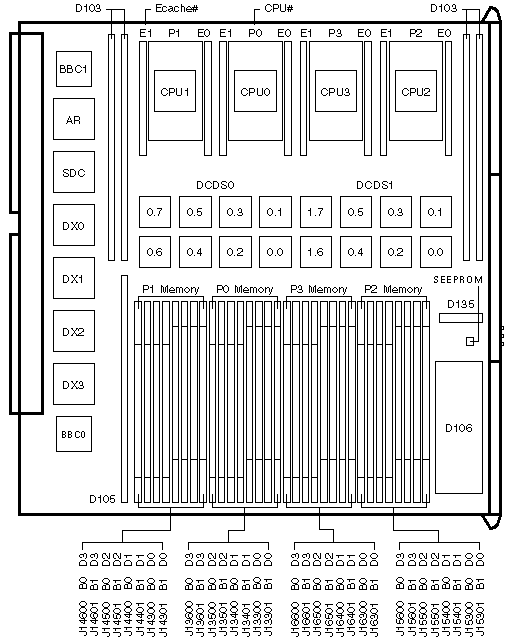

CPU/Memory Uniboard
Sun Fire V1280 / Netra 1280
| 501-6457 |
540-5467 |
540-4979 |
0MB w/o Ecache
w/o USIII |
0MB e Ecache
w/o USIII |
0MB FRU w Ecache
4 × 900MHz USIII Cu
Cheetah+ |
CPU1 and CPU0 Memory
| SOCKET |
CPU |
BANK |
DIMM |
J14600
J14601
J14500
J14501
J14400
J14401
J14300
J14301 |
P1
P1
P1
P1
P1
P1
P1
P1 |
B0
B1
B0
B1
B0
B1
B0
B1 |
D3
D3
D2
D2
D1
D1
D0
D0 |
J13600
J13601
J13500
J13501
J13400
J13401
J13300
J13301 |
P0
P0
P0
P0
P0
P0
P0
P0 |
B0
B1
B0
B1
B0
B1
B0
B1 |
D3
D3
D2
D2
D1
D1
D0
D0 |
|
|
CPU3 and CPU2 Memory
| SOCKET |
CPU |
BANK |
DIMM |
J16600
J16601
J16500
J16501
J16400
J16401
J16300
J16301 |
P3
P3
P3
P3
P3
P3
P3
P3 |
B0
B1
B0
B1
B0
B1
B0
B1 |
D3
D3
D2
D2
D1
D1
D0
D0 |
J15600
J15601
J15500
J15501
J15400
J15401
J15300
J15301 |
P2
P2
P2
P2
P2
P2
P2
P2 |
B0
B1
B0
B1
B0
B1
B0
B1 |
D3
D3
D2
D2
D1
D1
D0
D0 |
|
|
Sun Fire V1280 Codename: Lightweight 8 |
Notes
- The minimum operating system is Solaris 8 02/02.
- CPU/Memory slots are labeled SB0, SB2, and SB4.
- Four DIMMs of the same size form a bank.
- A populated DIMM bank requires an UltraSPARC III CPU.
- The CPU/Memory Uniboard includes a toothed rack and the chassis includes
clutched pinions in the rear of slots SB0, SB2, and SB4.
References
-
Sun Fire V1280 Service Manual, 816-0205.
-
Sun Fire V1280 System Administration Guide, 816-0204.
-
Sun Fire V1280 Site Preparation and Installation Guide, 816-0201.
|
