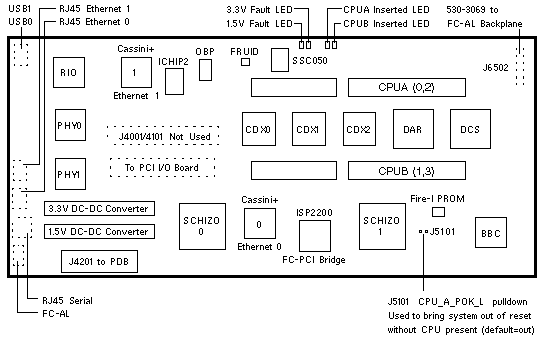

Sun Fire V480
Centerplane
A37
Schizo Data Address Mappings
| Schizo |
Bus |
# |
Device |
Device Path |
Speed |
| 0 |
EPCI Bus A
(pci8a) |
1 |
PCI Slot 0 |
pci@8,600000/<device>@1 |
66MHz |
| 2 |
PCI Slot 1 |
pci@8,600000/<device>@2 |
66MHz |
PCI Bus B
(pci8b) |
2 |
PCI Slot 2 |
pci@8,700000/<device>@2 |
33MHz |
| 3 |
PCI Slot 3 |
pci@8,700000/<device>@3 |
33MHz |
| 4 |
PCI Slot 4 |
pci@8,700000/<device>@4 |
33MHz |
| 5 |
PCI Slot 5 |
pci@8,700000/<device>@5 |
33MHz |
| 6 |
IDE |
pci@8,700000/ide@6 |
33MHz |
| 1 |
EPCI Bus C
(pci9a) |
1 |
Cassini 0 |
pci@9,600000/network@1 |
66MHz |
| 2 |
FCAL |
pci@9,600000/SUNW,qlc@2 |
66MHz |
PCI Bus D
(pci9b) |
1,0 |
EBUS |
pci@9,700000/ebus@1 |
33MHz |
| 1,3 |
USB |
pci@9,700000/usb@1,3 |
33MHz |
| 2 |
Cassini 1 |
pci@9,700000/network@2 |
33MHz |
|
Sun Fire V480 Codename: Cherrystone |
Notes
- The minimum operating system is Solaris 8 2/02.
- DC-DC Converter (3.3V) 300-1437 is not available as a FRU.
- DC-DC Converter (1.5V) 300-1438 is not available as a FRU.
- J4001 and J4101 are not factory installed on >=501-5819-09 Rev 51.
- The Centerplane provides the functionality of a motherboard,
including bridge control of the PCI and Safari busses, and EBus,
Ethernet, FC-AL, and I2C controllers.
References
-
Sun Fire V480 Product Notes, 816-0905.
-
Sun Fire V480 Administration Guide, 816-0904.
-
Sun Fire V480 Parts Installation and Removal Guide, 816-0907.
|
