Sun StorEdge 3310 Array LEDs Front Panel LEDs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LED Name | LED State | Status | Description |
|---|---|---|---|
| Disk Drive | Solid Green | Good | Driver power up and spin up OK |
| Blinking Green | Good | Drive activity | |
| Solid Yellow | Failed | Drive failure | |
| Power (light bulb icon) | Solid Green | Good | Power supply good |
| Solid Yellow | Failed | One or more output voltages out-of-range | |
| Fan | Solid Green | Good | Fan operating at over 3150 RPM |
| Solid Yellow | Faulty/Failed | Fan operating at under 3150 RPM | |
| Temperature (thermometer icon) | Solid Green | Good | Under temperature threshold of 55º C |
| Solid Yellow | Failed | Temperature threshold equal to or over 55º C | |
| Blinking Yellow | Failed | Temperature threshold equal to or over 60º C | |
| Event (caution icon) | Solid Green | Good | Normal operation of RAID controller and EMUs |
| Solid Yellow | Faulty/Failed | Abnormal event in EMU | |
| Blinking Yellow | Faulty/Failed | Abnormal event in RAID controller or failed RAID controller |
| LED Name | State | Description |
|---|---|---|
| Activity | Inactive | Not active |
| Blinking Green | Controller busy | |
| Solid Green | Controller data in cache | |
| Solid Yellow | Power lost and data in memory | |
| Status (wrench icon) | Slow Blinking Green | Good - primary controller |
| Solid Green | Good - secondary controller | |
| Solid Yellow | Failed controller | |
| Battery | Blinking Green | Battery is charging |
| Solid Green | Battery is fully charged | |
| Solid Yellow | Battery failed | |
| Ethernet (bottom left and right corners of the connector) | Amber | Ethernet link is connected and working |
| Blinking Green | Ethernet link is transmitting or receiving data |

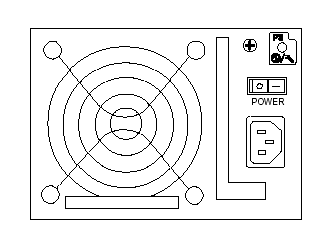

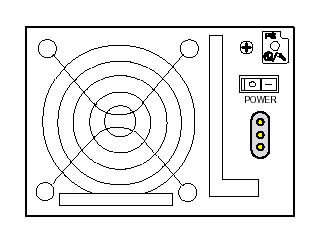

| LED Name | State | Description |
|---|---|---|
| Power Supply/Fan | Solid Green | Power supply and fan good, fan operating at over 3150 RPM |
| Solid Yellow | Power Supply - Failed, one or more output voltages out of range* Fan - Faulty/Failed, fan operating at under 3150 RPM |
|
| * Voltage Thresholds: +5 VDC +/- .25VDC, +12VDC +/- .6 VDC * Current Thresholds: +5 VDC 35A, +12 VDC 25 A |
||

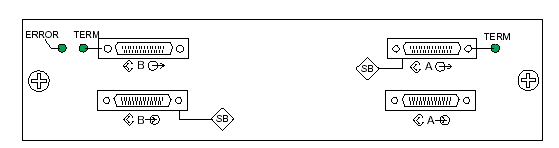

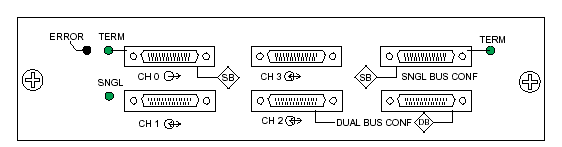

| LED Name | State | Description |
|---|---|---|
| TERM | Solid Green | Auto termination enabled |
| Inactive | Auto termination disabled | |
| ERROR | Blinking Green | Invalid single or dual cable configuration |
| Solid Yellow | Failed I/O module | |
| Inactive | Valid single or dual bus configuration and I/O module is good | |
| SNGL | Solid Green | Cabled for single bus configuration |
| Inactive | Cabled for dual bus configuration |

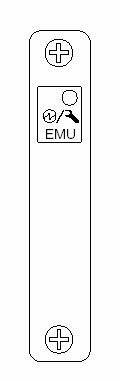

| LED State | Description |
|---|---|
| Solid Green | Good EMU module |
| Solid Yellow | Failed EMU module |
 | | | |
|
