SPARCcenter 2000 and 2000E
S2000 / S2000E / S2001E
56-inch Data Center Cabinet
| CODE |
PART # |
DESCRIPTION |
| 1 |
599-1821 |
SC2000 and SC2000E Rack Assembly |
| 2 |
240-1717 |
Caster |
| 3 |
530-1728 |
Power Supply Sense to Backplane Harness |
| 3 |
530-2210 |
Power Supply Sense to Backplane Harness 1 |
| 4 |
530-1743 |
Power Supply +/- 12 Volt to Backplane Harness |
| 5 |
240-1372 |
M4 0.7 × 10 mm Screw |
| 6 |
240-1952 |
M4 Washer (Bus Bar to Backplane) |
| 7 |
340-2620 |
Power Supply +1.2Vdc Lower Bus Bar |
| 8 |
340-2621 |
Power Supply +5Vdc Upper Bus Bar |
| 9 |
240-2213 |
M8 1.25 Nut, Washer, and Lock Washer |
| 10 |
340-2414 |
Power Supply Mounting Bracket, Lower |
| 11 |
340-2416 |
Power Supply Mounting Bracket, Front |
| 12 |
530-1738 |
Power Supply to AC Distribution Unit Harness |
| 13 |
300-1073 |
2410 Watt Power Supply (obsolete) |
| 13 |
300-1258 |
2410 Watt Power Supply (obsolete) |
| 13 |
300-1286 |
2410 Watt Power Supply |
| 13 |
300-1281 |
2410 Watt Power Supply 1 |
| 14 |
340-2415 |
Power Supply Mounting Bracket, Rear |
| NS |
340-2394 |
Power Supply Mounting Shelf |
| NS |
340-2395 |
Power Supply EMI Cover |
| 15 |
530-1724 |
AC Dist to Blower to Filter to Keyswitch Harness |
| 16 |
530-1725 |
Backplane to DB25 Filter Harness |
| NS |
130-2034 |
DB-25 Filter |
| NS |
130-1080 |
Jackscrew for DB25 Filter |
| NS |
240-1957 |
M4 0.7 × 25 mm Screw (Power Supply EMI Cover) |
| NS |
340-2400 |
Cardcage EMI Cover |
| NS |
340-2412 |
Cardcage Support Rail, Lower Left |
| NS |
340-2413 |
Cardcage Support Rail, Upper Left |
| NS |
340-2396 |
Cardcage Support Rail, Upper Right |
| NS |
340-2397 |
Cardcage Support Rail, Lower Right |
| NS |
340-2563 |
Cardcage Lower Access Panel |
| NS |
540-2114 |
Cardcage Slot Filler Panel |
- The PCM_FAIL signal prevents booting when Sense Cable 530-1728 is used with
Power Supply 300-1281. Use Sense Cable 530-2210.

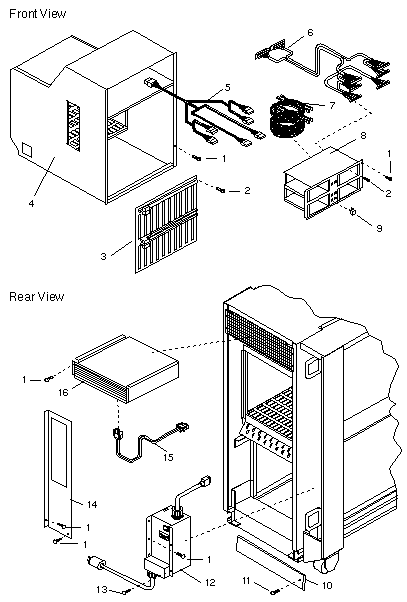

| CODE |
PART # |
DESCRIPTION |
| 1 |
240-1953 |
#10-32 × 1/2" Screw |
| 2 |
240-1372 |
M4 0.7 × 10 mm Screw |
3
- |
501-1670
240-1618 |
10-Slot Backplane
M4 Washer (Backplane) |
| 4 |
340-2401 |
Cardcage |
| 5 |
530-1752 |
SCSI Tray to Backplane DC Harness |
| 6 |
530-1835 |
SCSI Cable, Cardcage to SCSI Tray, 5.1M |
| 7 |
530-1849 |
SCSI Address Select Switch Harness (obsolete) |
7
-
- |
530-2077
240-1502
240-1612 |
SCSI Address Select Switch Harness
#2 Washer (SCSI Cable 530-1835)
#2-56 × 1/4" Screw (SCSI Cable 530-1835) |
| 8 |
340-2399 |
SCSI Peripheral Tray |
| 9 |
150-1806 |
SCSI Address Select Switch |
| 10 |
340-2047 |
Kick Panel |
| 11 |
240-1655 |
#10-32 × 3/4" Screw |
| 12 |
300-1099 |
AC Distribution Unit, 230V, NEMA L6-30P |
| 12 |
300-1100 |
AC Distribution Unit, 240V, Blue 32A IEC 309 |
| 13 |
240-1202 |
#6-32 × 5/8" Screw (AC Distribution Unit) |
| 14 |
340-2644 |
Rear Cover, 5 3/4" × 29 1/4" |
| 15 |
530-1741 |
Power Supply to DC Blower Unit Harness |
| 16 |
370-1379 |
24Vdc Dual-Blower Assembly, 600 CFM, 1350 RPM |
| NS |
340-2305 |
Filler Panel, SCSI Peripheral Tray |
| NS |
240-1958 |
#10-32 × 1.12" Screw (Cardcage EMI Cover) |
| NS |
370-1751 |
20GB 4 mm Tape Drive Shipping Bracket |
| NS |
530-1793 |
SCSI Cable, Cardcage to Slot 0, 80 cm |
| NS |
530-2171 |
8 mm Tape DC Adapter Harness for P/S 300-1258 |
| NS |
530-2149 |
PDB Back-to-Back Ethernet Cable, 1.0M |
| NS |
530-2150 |
PDB Back-to-Back Ethernet Cable, 5.0M |
| NS |
530-2151 |
PDB RJ45-to-DB25 Serial Cable, 1.0M |
| NS |
530-2152 |
PDB RJ45-to-DB25 Serial Cable, 5.0M |
| NS |
801-2007 |
SPARCcenter 2000 Service Manual |
S2000E / S2001E
56-inch Data Center Cabinet
| CODE |
PART # |
DESCRIPTION |
| 1 |
599-2027 |
SC2000E Rack Assembly with 1 Power Supply |
| 1 |
599-2031 |
SC2000E Rack Assembly with 2 Power Supplies |
| 2 |
340-3133 |
Power Supply Mounting Shelf |
| 3 |
530-2162 |
Power Supply Sense to P/S Interface PCB Harness |
| 4 |
530-2163 |
P/S Interface PCB to Backplane Harness |
| 5 |
501-2724 |
Power Supply Interface Card |
| 6 |
530-2170 |
Jumper Plug (installed if there is only 1 power supply) |
| 7 |
240-1372 |
M4 0.7 × 10 mm Screw |
| 8 |
240-1952 |
M4 Washer (Bus Bar to Backplane) |
| 9 |
340-2620 |
Top Power Supply +1.2Vdc Lower Bus Bar |
| 10 |
340-2621 |
Top Power Supply +5Vdc Upper Bus Bar |
| 11 |
300-1281 |
2410 Watt Power Supply 1 |
| 12 |
530-1738 |
Power Supply to AC Distribution Unit Harness |
| 13 |
340-2415 |
Power Supply Mounting Bracket |
| 14 |
340-3190 |
Bottom Power Supply Mounting Bracket |
| 15 |
240-2213 |
M8 1.25 Nut, Washer, and Lock Washer |
| 16 |
530-2164 |
Top to Bottom Power Supply +/- 12Vdc Harness |
| 17 |
340-3163 |
Top to Bottom Power Supply Bus Bar |
| 18 |
240-1435 |
M6 × 18 mm Screw for 340-3136 (×4) |
| 19 |
530-1743 |
Top Power Supply +/- 12Vdc to Backplane Harness |
| 20 |
340-3135 |
Top Power Supply Mounting Bracket |
| 21 |
530-2161 |
AC Dist to Blower to Filter to Keyswitch Harness |
| 22 |
530-1725 |
Backplane to DB25 Filter Harness |
| NS |
130-2034 |
DB-25 Filter |
| NS |
130-1080 |
Jackscrew for DB25 Filter |
| NS |
240-1957 |
M4 0.7 × 25 mm Screw (Power Supply EMI Cover) |
| NS |
340-3134 |
Power Supply EMI Cover |
- Do not use Power Supply 300-1073, 300-1258, or 300-1286. The PCM_FAIL
signal is not provided by these Power Supplies. Do NOT use Sense Cable
530-2210.

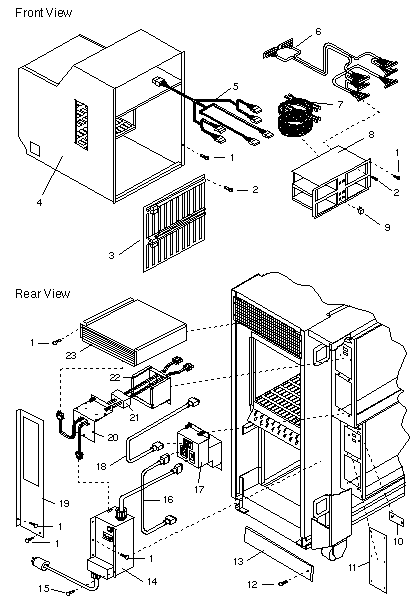

| CODE |
PART # |
DESCRIPTION |
| 1 |
240-1953 |
#10-32 × 1/2" Screw |
| 2 |
240-1372 |
M4 0.7 × 10 mm Screw |
3
- |
501-1670
240-1618 |
10-Slot Backplane
M4 Washer (Backplane) |
| 4 |
340-2401 |
Cardcage |
| 5 |
530-1752 |
SCSI Tray to Backplane DC Harness |
6
-
- |
530-1835
240-1502
240-1612 |
SCSI Cable, Cardcage to SCSI Tray, 5.1M
#2 Washer (SCSI Cable 530-1835)
#2-56 × 1/4" Screw (SCSI Cable 530-1835) |
| 7 |
530-2077 |
SCSI Address Select Switch Harness |
| 8 |
340-2399 |
SCSI Peripheral Tray |
| 9 |
150-1806 |
SCSI Address Select Switch |
| 10 |
340-3189 |
EMI Cover for Bottom Power Supply |
| 11 |
340-3157 |
EMI Cover for Bottom Power Supply |
| 12 |
240-1655 |
#10-32 × 3/4" Screw |
| 13 |
340-2047 |
Kick Panel |
| 14 |
300-1099 |
AC Distribution Unit, 230V, NEMA L6-30P |
| 14 |
300-1100 |
AC Distribution Unit, 240V, Blue 32A IEC 309 |
| 15 |
240-1202 |
#6-32 × 5/8" Screw (AC Distribution Unit) |
| 16 |
530-2160 |
AC Receptacle to Lower Power Supply Cable |
| 17 |
540-2689 |
AC Receptacle Assembly |
| 18 |
530-2160 |
AC Receptacle to Upper Power Supply Cable |
| 19 |
340-2644 |
Rear Cover, 5 3/4" × 29 1/4" |
| 20 |
340-3161 |
Filter Cover |
| 21 |
150-2357 |
Filter, AC Dist to Power Supply to Blower Harness |
| 22 |
340-3160 |
Filter Chassis |
| 23 |
370-1853 |
24Vdc Quad-Blower Assembly |
| NS |
340-2305 |
Filler Panel, SCSI Peripheral Tray |
| NS |
240-1958 |
#10-32 × 1.12" Screw (Cardcage EMI Cover) |
| NS |
370-1751 |
20GB 4 mm Tape Drive Shipping Bracket |
| NS |
530-1793 |
SCSI Cable, Cardcage to Slot 0, 80 cm |
|
801-2007 |
SPARCcenter 2000 Service Manual |
SPARCcenter 2000 and 2000E
S2000 / S2000E / S2001E
56-Inch Data Center Cabinet

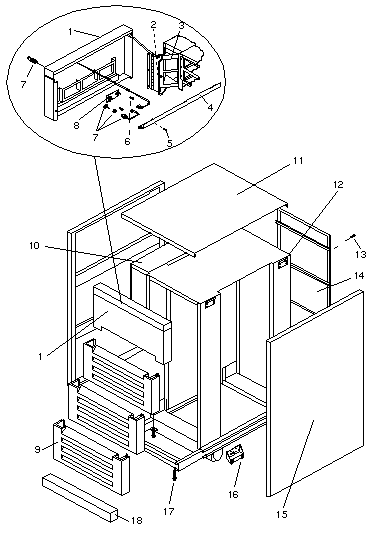

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2115 |
Hinged Panel Assembly |
| 2 |
240-1531 |
M4 0.7 × 10 Screw |
| 3 |
340-2456 |
Hinge Bracket, Left |
| 4 |
340-2467 |
Inner Cover |
| 5 |
240-1866 |
#8-18 × 3/8" Self-tapping Screw (Hinged Cover) |
| 6 |
240-1530 |
M3 × 6 mm Screw (LED/Switch PCB) |
7
- |
530-1723
330-1651 |
Keyswitch Assembly
Power Key |
| 8 |
501-1877 |
Keyswitch Interface Board |
| 9 |
540-2116 |
Vented Panel Assembly |
| 10 |
599-1821 |
Rack Assembly |
| 11 |
340-1840 |
Top Panel |
| 12 |
340-1885 |
Side Panel Bracket, Upper |
| 13 |
240-1655 |
#10-32 × 3/4" Screw |
| 14 |
340-1845 |
Rear Panel |
| 15 |
340-1848 |
Side Panel |
| 16 |
340-1886 |
Side Panel Bracket, Lower |
| 17 |
230-1181 |
Leveler Foot |
| NS |
250-1070 |
Leveler Foot Wrench |
| 18 |
340-1884 |
Anti-Tilt Panel |
| NS |
230-1166 |
Cable Tie 5.5", Reusable |
| NS |
230-1177 |
Snap In Clip |
| NS |
230-0203 |
Cable Tie |
| NS |
230-1062 |
Cable Route Grommet |
| NS |
260-3425 |
Sun Logo |
| NS |
260-6392 |
SPARCcenter 2000 Nameplate |
| NS |
261-4128 |
SPARCcenter 2000E Nameplate |
| NS |
240-1632 |
3/8-16 × 3/4" Bolt (Caster) |
| NS |
240-1634 |
3/8" Washer (Caster) |
| NS |
240-1791 |
#6-32 Ballstud |
| NS |
240-1868 |
1/4-28 × 1" Screw (Anti-Tilt Bar) |
10-Slot XDBus Logic Enclosure
| Air Baffle Kit #1 |
|
Air Baffle Kit #2 |
 |
 |
|
| Cardcage 340-2401-02 |
Cardcage 340-2401-04 |
 |
 |
Notes
- The SM51-2 Upgrade includes Air Baffle Kit #1.
- The SM61-2 Upgrade includes Air Baffle Kit #1 and Air Baffle Kit #2.
- The SM81-2 Upgrade includes Air Baffle Kit #1 and Air Baffle Kit #2.
- Air Baffle Kits are not included with stand-alone Module Options.
- Air Baffle Kit #1 is installed in systems built after December 1, 1993.
- Cardcage 340-2401-04, released in April 1994, incorporates the airflow
design changes made by Air Baffle Kit #1.
- Air Baffle Kit #2 is installed in systems built after September 1, 1994.
- Cardcages 340-2401-01 and 340-2401-03 were not manufactured.
| CODE |
PART # |
DESCRIPTION |
NS
-
-
- |
560-2011
230-1401
240-2168
801-6248 |
Backplane Guide Pin Kit
 #2-56 Nut
Guide Pin
Guide Pin Upgrade Manual |
-
1
2 |
595-3290
230-1402
340-3036
340-3037 |
Air Baffle Kit #1
Snap Fastener (×20)
Side Plate (×2)
End Plate |
-
3
4
- |
595-3509
230-1402
340-3099
340-3132
801-6727 |
Air Baffle Kit #2
Snap Fastener (×4)
Baffle
Baffle Support Bracket
SPARCenter 2000 Air Baffle Upgrade Manual |
Chassis Air Baffle Kit Requirements
|
CHASSIS MANUFACTURING DATE |
| CHASSIS |
Pre-FCS - 12/93 |
12/93 - 4/94 |
4/94 - 9/94 |
9/94 - Present |
| 340-2401-02 |
SM51-2 requires
Air Baffle Kit #1 |
SM51-2 has no
requirements |
Not
Manufactured |
Not
Manufactured |
SM61-2 requires
Air Baffle Kit #1
Air Baffle Kit #2 |
SM61-2 requires
Air Baffle Kit #2 |
Not
Manufactured |
Not
Manufactured |
SM81-2 requires
Air Baffle Kit #1
Air Baffle Kit #2 |
SM81-2 requires
Air Baffle Kit #2 |
Not
Manufactured |
Not
Manufactured |
| 340-2401-04 |
Not
Manufactured |
Not
Manufactured |
SM51-2 has no
requirements |
SM51-2 has no
requirements |
Not
Manufactured |
Not
Manufactured |
SM61-2 requires
Air Baffle Kit #2 |
SM61-2 has no
requirements |
Not
Manufactured |
Not
Manufactured |
SM81-2 requires
Air Baffle Kit #2 |
SM81-2 has no
requirements |
|
