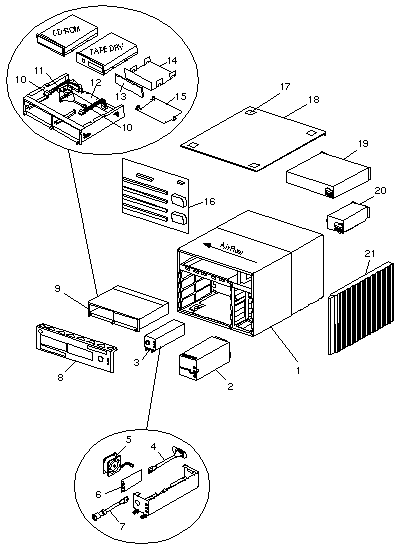

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2707 |
8-Slot Chassis Assembly |
| 2 |
300-1260
300-1444
540-2593 |
300 Watt Power/Cooling Module
300 Watt Power/Cooling Module
Power/Cooling Module Filler Panel |
3
4
5
6
7
- |
370-1810
530-2198
370-1911
501-2599
530-2148
330-2014 |
Keyswitch Assembly/FRU
 LED Board to Backplane Cable
Fan
LED Board
Keyswitch Cable Assembly
Key (replaced 330-1651) |
8
- |
540-2734
330-1973 |
Front Filler Panel
Clear Plastic Label Cover |
9
10
11
12
12
13
14
15 |
540-2587
530-2118
501-2600
530-2119
530-2382
330-1939
340-3341
340-3304 |
SCSI Tray Assembly/FRU
DC Wire Harness (×2)
SCSI Adapter
Internal SCSI Cable, 59 cm
Internal SCSI Cable, 63 cm 1
Filler Panel
Filler Panel Bracket
Peripheral Mounting Bracket |
| 16 |
501-2978 |
8-Slot Backplane |
| 17 |
330-1999
330-2000 |
Top Cover Plug
Bottom Cover Foot |
| 18 |
330-1782 |
Top/Bottom Cover |
| 19 |
300-1301 |
184 Watt Peripheral Power Supply |
| 20 |
370-1811
370-2364 |
AC Input and Fan Assembly/FRU
Danish AC Input and Fan Assembly/FRU |
| 21 |
330-1783 |
Side Panel |
| NS |
262-0758 |
Netra i 4000 Nameplate |
| NS |
263-0146 |
E4000 Nameplate |
| NS |
263-0233 |
HPC4000 Nameplate |
| NS |
530-1871 |
RJ45 to RJ45 Cable, 4M |
| NS |
530-2093 |
Shielded RJ45 to RJ45 Cable, 4M |
| NS |
540-2592 |
Board Slot Filler Panel |
| NS |
595-3780 |
MII to AUI Converter (requires AC power) |
|
802-3845 |
Ultra Enterprise 4000/5000/6000 System Manual |
