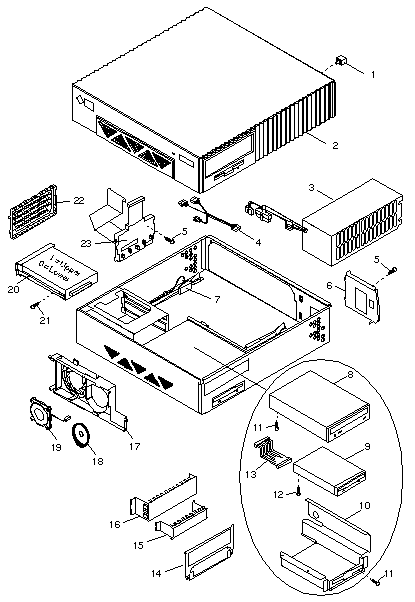

Ultra[tm] 1 Workstation Models 140E / 170E / 200E

A12 / Netra[tm] i 1/170E / Netra i 1/200E

2-Slot SBus Logic Enclosure

CODE PART # DESCRIPTION
1 540-2540 Lockbox
2 540-2650 Top Cover Assembly
3 300-1248 180W Power Supply (obsolete)
3 300-1308 180W Power Supply
4 530-2176 Peripheral and Fan Wire Harness
5 240-2101 M3 Captive Screw
6 330-1896 Power Supply Bezel
7 530-2175 Speaker and LED Wire Harness
8
8
8
8
8
8
370-1922
370-2102
370-2176
370-2377
370-2881
370-2816
14GB 8 mm Tape Drive
4X CD-ROM
4-8GB 4 mm DDS-2 Tape Drive
12-24GB 4 mm DDS-3 Tape Drive
7-14GB 8 mm Tape Drive
12X CD-ROM
9
9
-
370-2151
370-3212
530-2316
3D Floppy Drive
3D Floppy Drive
Floppy DC Power Filter Cable, 76 mm
10 340-3186 Floppy and CD-ROM Mounting Bracket
11 240-1878 #6-32 × 5/16" Screw (CD-ROM)
12 240-1530 M3 × 6 mm Screw (Floppy Drive)
13 530-2187 Floppy Data Cable, 205 mm
14 330-1895 Floppy and CD-ROM Bezel
15 540-2700 Floppy Filler Panel
16 540-2701 CD-ROM Filler Panel
17
18
540-2710
370-1579
Speaker Assembly
Speaker
19 540-2666 Fan Assembly
20
20
20
20
20
20
540-2729
540-2730
540-2782
540-2936
540-3171
540-2938
1.05GB 5400 RPM Disk Drive Assembly/FRU
2.1GB 7200 RPM Disk Drive Assembly/FRU
2.1GB 5400 RPM Disk Drive Assembly/FRU
2.1GB 7200 RPM Disk Drive Assembly/FRU
2.1GB 5400 RPM Disk Drive Assembly/FRU
4.2GB 7200 RPM Disk Drive Assembly/FRU
21
21
240-2080
240-2304
#6-32 x 3/16" Torx Screw
#6-32 x 3/16" Torx Screw
22 340-3201 Disk Drive Access Cover
23 530-2153 Peripheral Data Cable Assembly, 410 mm
NS 262-0060 Netra i Nameplate
NS 263-0064 Ultra 1 Creator Nameplate
NS 263-0065 Ultra 1 Creator 3D Nameplate
NS 263-0066 Ultra 1 Server Nameplate
NS 260-6233 Sun Logo
NS 330-1839 Foot
NS 340-3187 SBus Filler Panel
NS 530-1871 RJ45 to RJ45 Cable, 4M
NS 530-2068 DB25 to 36-Pin Centronics Parallel Cable, 5M
NS 530-2093 Shielded RJ45 to RJ45 Cable, 4M
NS 595-3780 MII to AUI Converter (requires AC power)
- 802-4148 Sun Ultra 1 Creator Series Service Manual
