RSM [tm] Array 2000 / StorEdge [tm] A3000

6530 6531 6532
5 RSM Trays
15 4.2GB Disks
5400 RPM
5 RSM Trays
35 4.2GB Disks
5400 RPM
5 RSM Trays
15 4.2GB Disks
7200 RPM
6533 6534 6535
5 RSM Trays
35 4.2GB Disks
7200 RPM
5 RSM Trays
15 4.2GB Disks
7200 RPM
5 RSM Trays
35 9.1GB Disks
7200 RPM

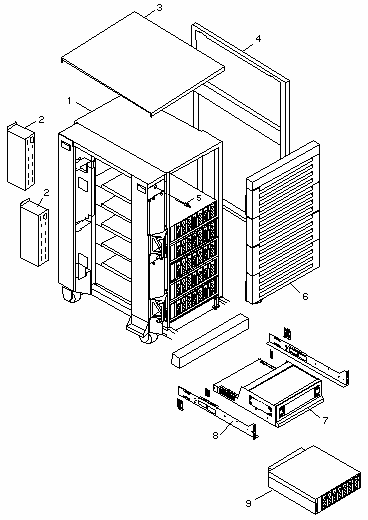

CODE PART # DESCRIPTION
1
2
3
4
5
6
NS
NS
540-2809
300-1290
340-3352
340-3354
540-2393
540-2810
530-2265
530-2266
56-inch Enterprise Expansion Cabinet Assembly
Universal Power Sequencer
Top Panel, Medium Grey
Side Panel, Medium Grey
Keyswitch Assembly
Door Assembly
AC Power Cord, Harting Han 6HsB to NEMA L6-30P
AC Power Cord, Harting Han 6HsB to IEC 309
7
7
-
-
-
-
-
-
-
8
370-2408
370-2431
370-2869
370-2436
370-2432
370-2435
540-3600
370-2434
370-2433
370-2437
RSM Array 2000/StorEdge A3000 Assembly
Chassis with Backplane FRU
Power Supply Chassis Assembly
Power Supply
Power Supply Fan Assembly
Differential SCSI Array Controller without Memory
Differential SCSI Array Controller with Memory
Battery Assembly
Differential SCSI Array Controller Fan Assembly
Mounting Rail Set
9
9
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
-
-
370-2198
540-2784
540-2939
540-2942
340-3627
530-1885
530-1886
530-2197
530-2236
530-2264
RSM with 3× Disk Drives per Tray
RSM with 7× Disk Drives per Tray
SPARCstorage RSM Chassis FRU
4.2GB 5400 RPM Disk Drive Assembly/FRU
4.2GB 7200 RPM Disk Drive Assembly/FRU
9.1GB 7200 RPM Disk Drive Assembly/FRU
SPARCstorage RSM Shipping Bracket
External SCSI Cable, HD68 to HD68, 2.0 M
External SCSI Cable, HD68 to HD68, 12.0 M
AC Power Cord, AMP Mate-N-Lok to IEC-320
Remote Keyswitch Control Cable, 3.2M
AC Power Cord, AMP Mate-N-Lok to Y IEC-320
