SPARCstorage[tm] Array Model 101

651 652
1.05GB Disk
5400 RPM
w/o SSA Tray
6 1.05GB Disks
5400 RPM
w/o SSA Tray
653 654 655
SSA 101 Array
6 1.05GB Disks
5400 RPM
SSA 101 Array
18 1.05GB Disks
5400 RPM
SSA 101 Array
30 1.05GB Disks
5400 RPM

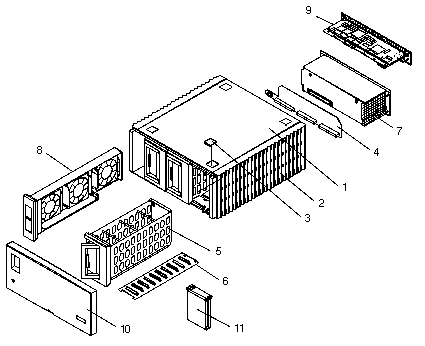

CODE PART # DESCRIPTION
NS
1
2
2
3
NS
4
5
6
NS
NS
7
-
8
-
-
540-2406
330-1469
330-1470
330-1869
330-1589
330-1590
501-2029
540-2245
501-2010
540-2248
340-2670
540-2465
300-1098
540-2573
370-1801
370-1885
Chassis Assembly
Top and Bottom Cover
Side Cover (obsolete)
Side Cover
Cover Plug
Foot
Backplane
Drive Tray FRU Assembly
Drive Tray Backplane
Chassis Subassembly
Chassis
Power Supply FRU Assembly
440 Watt Power Supply
Fan Tray FRU Assembly
120 × 38 mm Fan, 100CFM (obsolete)
120 × 38 mm Fan, 100CFM
-
-
260-6233
260-6604
Sun Logo
SPARCstorage Array Nameplate
9
-
-
-
-
501-2552
501-2080
501-2028
501-2857
370-1426
Configured Array Controller
Array Controller (40MHz microSPARC II)
Battery Module (obsolete)
Battery Module
Fibre Channel Optical Module
10 540-2382 Front Bezel Assembly
11
-
-
-
-
-
-
540-2568
240-2080
370-1822
370-1964
540-2412
370-1753
540-2413
1.05GB Disk Drive FRU
#6-32 × 3/16 Button Screw, Torx
1.05GB Disk Drive, Conner CFP1060E
1.05GB Disk Drive, Conner CFP1080E
Conner Disk Drive Mounting Bracket
1.05GB Disk Drive, Seagate ST31200WC
Seagate Disk Drive Mounting Bracket
NS 537-1004 Fibre Optical Cable, 2M
NS 537-1006 Fibre Optical Cable, 15M

801-2204 SPARCstorage Array User's Guide

801-2205 SPARCstorage Array Installation Manual

801-2206 SPARCstorage Array 100 Series Service Manual
