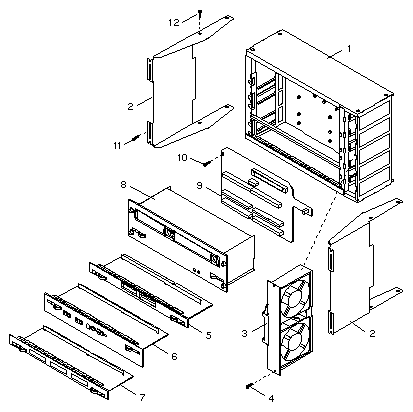

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2653 |
Chassis Assembly |
| 1 |
340-3125 |
Chassis Enclosure |
| 2 |
340-3103 |
Chassis Mounting Bracket |
3
- |
540-2610
370-1845 |
2-Fan Tray Assembly/FRU
 DC Fan |
| 4 |
240-1530 |
M3 × 6 mm Screw |
| 5 |
501-2781 |
LCD Display |
6
-
-
- |
501-3024
501-3021
370-1426
501-2857 |
Configured Differential Array Controller
Differential SCSI Array Controller (110MHz)
Fibre Channel Optical Module
Battery Module |
| 7 |
501-2670 |
Differential SCSI to Fibre Channel Adapter |
8
- |
540-2465
300-1098 |
Power Supply Assembly/FRU
440 Watt Power Supply |
| 9 |
501-2664 |
Backplane |
| 10 |
240-1559 |
M4 0.7 × 6 mm Screw |
| 11 |
240-1953 |
#10-32 × 1/2" Screw |
| 12 |
240-2186 |
M6 0.7 × 8 mm Screw |
| NS |
261-4696 |
SPARCstorage Array 200 Logo |
| NS |
530-1343 |
AC Power Cord, 240V |
| NS |
530-1351 |
AC Power Cord, 10A/250V |
| NS |
537-1004 |
Fibre Optical Cable, 2M |
| NS |
537-1006 |
Fibre Optical Cable, 15M |
|
801-2204 |
SPARCstorage Array User's Guide |
|
802-2027 |
SPARCstorage Array 200 Installation Manual |
|
802-2028 |
SPARCstorage Array 200 Series Service Manual |
