| CODE |
PART # |
DESCRIPTION |
-

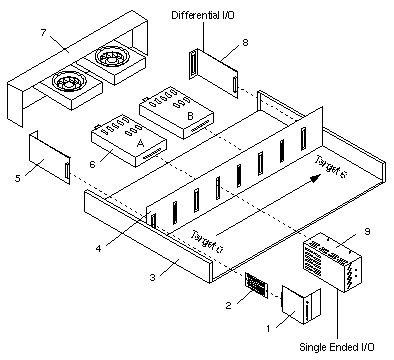

1
2
3
4 |
370-2194
370-2955
540-3085
230-1545
370-2198
None
None
None
None |
Chassis with Power Modules and WD2S Card
Chassis with Power Modules and WD2S Card
Chassis, Power Modules, Dampers, and WD2S Card
 Vibration Dampers (×28)
Chassis FRU
Operator Panel
Operator Panel Cable
Chassis
Centerplane |
| 5 |
370-2195 |
Environmental Sensor Card |
6
6 |
300-1311
300-1328 |
200 Watt Power Supply Modules A and B
200 Watt Power Supply Modules A and B |
| 7 |
370-2197 |
Fan Assembly |
8
8 |
370-2196
370-3375 |
WD2S Single-Ended to Differential Interface Card
WD2S Single-Ended to Differential Interface Card |
9
-
-
- |
540-2942
370-2304
370-2369
370-2370 |
9.1GB 7200 RPM Disk Drive Assembly/FRU
Disk Drive Enclosure
9.1GB Disk Drive, Seagate ST19171WC
9.1GB Disk Drive, Fujitsu M2949 |
| NS |
180-1189 |
230V AC Power Cord, IEC-320 to NEMA 6-15 |
| NS |
180-1190 |
240V AC Power Cord, IEC-320 to Reverse IEC-320 |
| NS |
250-1305 |
RSM Tray EMI Shield (required for EMI reduction) |
| NS |
340-3627 |
Shipping Bracket |
| NS |
530-1351 |
10A/250V AC Power Cord, IEC-320-c13 to NEMA 6-15p, 2M |
| NS |
530-1343 |
240V AC Power Cord, IEC-320 to Reverse IEC-320 |
| NS |
530-2197 |
AC Power Cord, AMP Mate-N-Lok to IEC-320 |
| NS |
530-2264 |
AC Power Cord, AMP Mate-N-Lok to Y IEC-320 |
| NS |
565-1421 |
Damper Kit with 35× 230-1545 Dampers |
NS
- |
370-2343
565-1478 |
Rack Mount Tray
Front Bkt 250-1237 and Rear Bkt 250-1238 |
|
802-5062 |
SPARCstorage RSM Installation and Service |
