SPARCstorage [tm] Library Model 8/140

847 848 849 867 868 869
140-280GB
14GB 8 mm
Deskside
Light Grey
w/o Scanner
140-280GB
14GB 8 mm
Rack-Mount
Light Grey
w/o Scanner
140-280GB
14GB 8 mm
Stackable
Light Grey
w/o Scanner
140-280GB
14GB 8 mm
Deskside
Light Grey
w Scanner
140-280GB
14GB 8 mm
Rack-Mount
Light Grey
w Scanner
140-280GB
14GB 8 mm
Stackable
Light Grey
w Scanner

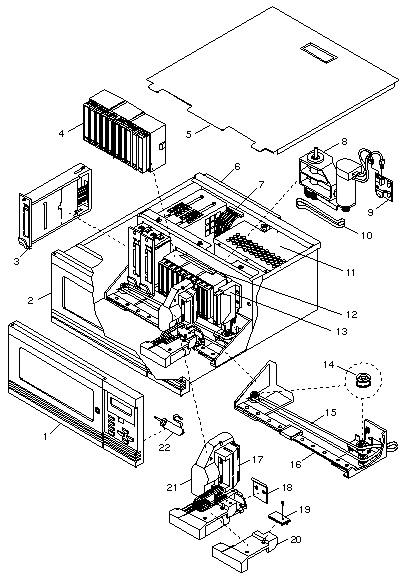

CODE SUN
PART #
EXABYTE
PART #
DESCRIPTION
1 370-1909 309011 Vertical Front Panel Assy (use T10 Torx)
1 370-1924 xxxxxx Vertical Front Panel Assy w/o Logo
1 370-1910 xxxxxx Horizontal Front Panel Assy (use T10 Torx)
1 370-1923 xxxxxx Horizontal Front Panel Assy w/o Logo
1 370-1914 xxxxxx Stackable Front Panel Assy (use T10 Torx)
1 370-1925 xxxxxx Stackable Front Panel Assy w/o Logo
2 370-1915 xxxxxx Vertical EXB-210 without Tape Drives
2 370-1926 xxxxxx Vertical EXB-210 w/o Tape Drives or Logo
2 370-1916 xxxxxx Horizontal EXB-210 without Tape Drives
2 370-1927 xxxxxx Horizontal EXB-210 w/o Tape Drives or Logo
2 370-1917 xxxxxx Stackable EXB-210 without Tape Drives
2 370-1928 xxxxxx Stackable EXB-210 w/o Tape Drives or Logo
3 370-1881
None
308378
xxxxxx
14GB Exabyte 8505XL Tape Drive
Empty Tape Drive Carrier
4 370-1884 307522 Empty 10 Tape Magazine (×4) 1
5 None 110181 Service Access Cover (use T10 Torx)
6 370-1896 3701896 SMCS Card Assembly
6 370-2097 311397 SMCS Card Assembly
7 370-1897 306558 Operator Panel Cable (use T8 Torx)
7 370-1898 306557 CHM Cable (use T8 Torx)
8 370-1887 303247 Long Axis Motor Module (use T20 Torx)
9 370-1893 303078 Motor Distribution Card
10 370-1899 302906 Motor Module Belt
11
-
370-1894
370-1895
302396
302692
160 Watt Power Supply
Power Supply External 2.5A Fuse
12 None 302413 Magazine Mounting Plate (use T15 Torx)
13 None 302969 Fixed Cartridge Holder (use T20 Torx)
14 370-1902 306561 Idler Pulley Assembly
15 370-1900 302902 Long Axis Belt (use T10 and T20 Torx)
16 370-1901 306767 Long Axis Assembly (use T20 Torx)
17 370-1874 306014 Barcode Scanner (use T10 and T20 Torx)
18 None xxxxxx Long Axis Belt Clamp (use 90° T10 Torx)
19 None xxxxxx CHM Cable Strain Relief (use T10 Torx)
20 None xxxxxx CHM Cover (use T10 Torx)
21 370-1888 303339 Cartridge Handling Mechanism
22 370-1892 302408 Front Panel Locking Solenoid (use T15 Torx)
NS 370-1385 None Slide Rail Set (requires 370-1385-04)
NS 370-1903 3701903 SCSI Jumper Plug
NS 370-1904 3701904 Tape Magazine Dust Cover
NS 370-1905 3701905 Door Wipes
NS 370-1906 310386 T-10 Torx Wrench
NS 370-1907 310387 T-15 Torx Wrench
NS 370-1908 3701908 Barcode Labels
NS 370-1912 000053 115V Power Cord
NS 370-1962 xxxxxx Rack-Mount Retaining Bracket
NS None 307407 Vertical EXB-210 Filters (use T15 Torx)
NS None 303677 Horizontal EXB-210 Filter (use T15 Torx)
NS None 302668 Vertical EXB-210 Top Cover Stiffener
NS None 307762 CHM Alignment Triangle
NS None 306518 Left Side Cover (use T20 Torx)
NS None 306519 Right Side Cover (use T20 Torx)
NS None 306520 Top Cover
NS None 302984 Vertical EXB-210 1/4-20 Foot
NS 330-1651 xxxxxx Front Panel Key
NS None 307406 Vertical Base
NS None xxxxxx Vertical Base Weight, 0.75 lb (×5)

None 510811 EXB-210 Maintenance (from Exabyte)

802-2143 None SPARCstorage Library Service Manual

805-1386 None SPARCstorage Library Service Manual

1 A magazine loaded with ten 112M data tapes and one cleaning tape is available from eSun as Option BT-8MM-10PACKCL.

140-280GB SPARCstorage [tm] Library Model 8/140

6221 6222 6223 6224
140-280GB
14GB 8 mm
Rack Mount
Medium Grey
w/o Scanner
140-280GB
14GB 8 mm
Rack Mount
Medium Grey
w Scanner
140-280GB
14GB 8 mm
Stackable
Medium Grey
w/o Scanner
140-280GB
14GB 8 mm
Stackable
Medium Grey
w Scanner

CODE SUN
PART #
EXABYTE
PART #
DESCRIPTION
1
1
370-2348
370-2349
xxxxxx
xxxxxx
Horizontal Front Panel Assy (use T10 Torx)
Stackable Front Panel Assy (use T10 Torx)
2
2
370-2346
370-2347
xxxxxx
xxxxxx
Horizontal EXB-210 without Tape Drives
Stackable EXB-210 without Tape Drives
3 370-1881
None
308378
xxxxxx
14GB Exabyte 8505XL Tape Drive
Empty Tape Drive Carrier
4 370-1884 307522 Empty 10 Tape Magazine (×4) 1
5 None 110181 Service Access Cover (use T10 Torx)
6 370-2097 311397 SMCS Card Assembly
7
7
370-1897
370-1898
306558
306557
Operator Panel Cable (use T8 Torx)
CHM Cable (use T8 Torx)
8 370-1887 303247 Long Axis Motor Module (use T20 Torx)
9 370-1893 303078 Motor Distribution Card
10 370-1899 302906 Motor Module Belt
11
-
370-1894
370-1895
302396
302692
160 Watt Power Supply
Power Supply External 2.5A Fuse
12 None 302413 Magazine Mounting Plate (use T15 Torx)
13 None 302969 Fixed Cartridge Holder (use T20 Torx)
14 370-1902 306561 Idler Pulley Assembly
15 370-1900 302902 Long Axis Belt (use T10 and T20 Torx)
16 370-1901 306767 Long Axis Assembly (use T20 Torx)
17 370-1874 306014 Barcode Scanner (use T10 and T20 Torx)
18 None xxxxxx Long Axis Belt Clamp (use 90° T10 Torx)
19 None xxxxxx CHM Cable Strain Relief (use T10 Torx)
20 None xxxxxx CHM Cover (use T10 Torx)
21 370-1888 303339 Cartridge Handling Mechanism
22 370-1892 302408 Front Panel Locking Solenoid (use T15 Torx)

1 A magazine loaded with ten 112M data tapes and one cleaning tape is available from eSun as Option BT-8MM-10PACKCL.

SUN
PART #
EXABYTE
PART #
DESCRIPTION
370-2815 None Slide Rail Set
370-1903 3701903 SCSI Jumper Plug
370-1904 3701904 Tape Magazine Dust Cover
370-1905 3701905 Door Wipes
370-1906 310386 T-10 Torx Wrench
370-1907 310387 T-15 Torx Wrench
370-1908 3701908 Barcode Labels
370-1912 000053 115V Power Cord
370-1962 xxxxxx Rack-Mount Retaining Bracket
None 303677 Horizontal EXB-210 Filter (use T15 Torx)
None 307762 CHM Alignment Triangle
None 306518 Left Side Cover (use T20 Torx)
None 306519 Right Side Cover (use T20 Torx)
None 306520 Top Cover
330-1651 xxxxxx Front Panel Key
None 510811 EXB-210 Maintenance (available from Exabyte)
802-2143 None SPARCstorage Library Service Manual
805-1386 None SPARCstorage Library Service Manual
