Sun StorEdge [tm] L11000 Tape Library

TAPDLT2-11TB LIBDLT4-11TB LIBDLT16-11TB
35-70GB DLT [tm] 7000
Expansion Drive
35-70GB DLT7000
4 Drive Diskside
35-70GB DLT7000
16 Drive Diskside

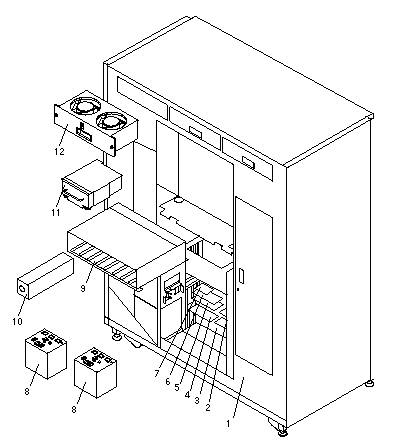

CODE SUN PART # DESCRIPTION
1
1
380-0217
380-0218
L11000 w 4 DLT Drives
L11000 w 16 DLT Drives
2 None DC-DC Converter 6310495
3 370-3733 Backplane
4
5
370-3731
370-3730
Actuator Driver #1 Board (service manual lists these boards as identical)
Actuator Driver #0 Board (service manual lists these boards as identical)
6
-
370-3728
None
Robotics Controller Board with Memory
Memory Module 6220349
7 370-3732 Differential SCSI Board
8 370-3726 AC Power Distribution Assembly (up to 2)
9 370-3725 Power Supply Rack Assembly
10 370-3724 400 Watt Power Supply (up to 8)
11 370-3723 DLT 7000 Tape Drive FRU (up to 16)
12 370-3727 Fan Module (×3)
NS 370-3729 US Power Cord
NS 370-3734 Control Panel Assembly
NS 370-3735 Extension Axis Assembly
NS 370-3736 X-Axis and Y-Axis Stepper Motor
NS 370-3737 Rotary Axis Stepper Motor
NS 370-3738 X-Axis Interconnect Board
NS 370-3739 Y-Axis Interconnect Board
NS 370-3740 Rotary Axis Sensor Board
NS 370-3741 Motor Power Converter (listed as DC-DC Converter in service manual)
NS 370-3742 Left Drive Tray Board (replaced by 375-0108)
NS 370-3743 Right Drive Tray Board (replaced by 375-0106)
NS 370-3744 Left Drive Sideboard Board (replaced by 375-0109)
NS 370-3745 Right Drive Sideboard Board (replaced by 375-0107)
NS 370-3746 Y-Axis Belt, 1" Wide × 3/8" Pitch
NS 370-3747 X-Axis Belt, 1" Wide × 3/8" Pitch
NS 375-0106 Right Drive Tray Board (replaces 370-3743)
NS 375-0107 Right Drive Sideboard Board (replaces 370-3745)
NS 375-0108 Left Drive Tray Board (replaces 370-3742)
NS 375-0109 Left Drive Sideboard Board (replaces 370-3744)
NS 150-1890 Differential SCSI Terminator
NS 330-1651 Key
NS 370-2188 DLT Data Cartridge
NS 370-2189 Cleaning Cartridge
NS 370-3544 4 Packages of 99 Data Barcode Labels
NS 370-3629 1 Package of 33 Cleaning Tape Barcode
NS 370-3729 IEC320-C19 to NEMA 5-20 AC Power Cord
NS 370-4185 Right Drive Board Kit, 375-0108 + 375-0109 *
NS 370-4186 Left Drive Board Kit, 375-0106 + 375-0107 *
NS None 5/32" Hex Wrench for Rear Doors (not included)
NS None International AC Power Cords
NS None Internal Cables
NS None Internal SCSI Cable 0425017, HD68 to HD68, 1M
NS 530-2352 External SCSI Cable, HD68 to HD68, 4M
NS 565-1540 Service Kit with Tools, Manuals, and Diagnostics

704-6526
704-6527
805-5577
805-7275
805-7276
805-7277
805-7278
StorEdge L11000 Reference CD-ROM
StorEdge L11000 Service CD-ROM
Control Panel Password Instructions
StorEdge L11000 Users Guide
StorEdge L11000 Service Manual
StorEdge L11000 Unpacking Instructions
StorEdge L11000 Uncrating Instructions

* New Drive Tray Boards are not compatible with old Drive Sideboard Boards.
