Sun ETL [tm] 4/1800 / Sun StorEdge [tm] L1800

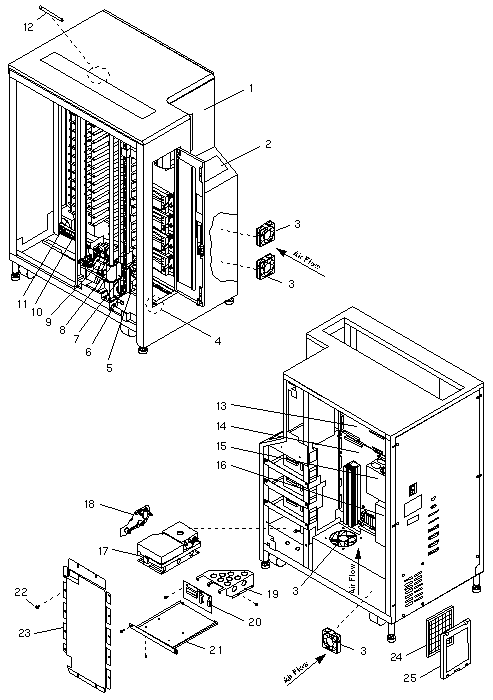

CODE	SUN PART#	ATL PART#	DESCRIPTION
1	595-4354 595-4355	Unknown Unknown	ETL 4/1800 2-Drive Assembly ETL 4/1800 4-Drive Assembly
2	370-3255	6210584	Touch Panel Assembly
3	370-3260	6211654	Fan Assembly (ATL recommends 6210537)
4	370-2859	6210516	Door Switch Assembly
5	370-2858	6210515	X-Axis Confirmation Sensor
6	370-2855	6210510	Y-Axis Stepper Motor Assembly
7	370-2854	6210480	X-Axis Interconnect Board
8	370-2864	0645083	Y-Axis Drive Belt
9	370-2863	6210720	Extension Axis Assembly
10	370-2864	0645083	X-Axis Drive Belt
11	370-2856	6210511	X-Axis Stepper Motor Assembly
12	370-2866	0385016	Fluorescent Bulb
13	370-2853	6210470	Robotic Controller Board (-02 required)
14	370-2851	6210450	Actuator Driver Board
15	300-1338	0355041	PC Logic Power Supply
16	300-1339	0355038	Motor Power Supply
17 17 17 18 19 20 21 NS	370-3272 370-3332 None 370-3261 None 370-3262 None None	6210208 6210208 Unknown 0815033 6210509 6211630 6211003 Unknown	DLT7000 Assembly/FRU (obsolete) DLT7000 Assembly/FRU Differential DLT7000 Tape Drive Stepper Motor Assembly Tape Drive Mounting Bracket Tape Drive Interface Board Tape Drive Shelf Tape Drive Air Baffle
22	None	Unknown	#10-32 × 1/2" Screw with Washer
23	None	6210038	Tape Drive Bay EMI Cover
24	None	Unknown	Air Filter, 7.5" × 6"
25	None	6211005	Air Filter Cover
NS	370-2857	6210512	Load Port Door Lockout Solenoid
NS	370-2860	6210518	Y-Axis Umbilical Cable
NS	370-2861	6210520	X-Axis Umbilical Cable

SUN PART#	ATL PART#	DESCRIPTION
None	6210526	Actuator Driver to Robotics Ctlr Cable
None	6210558	Actuator Driver 48V Power Cable
None	6210525	Control Panel Cable
None	6210527	X-Axis Motor Drive Cable
370-2516	6210538	Fan Power Cable
370-2517	Unknown	Shielded Power Cable
None	6210539	Internal 9-Pin RS-232 Cable
None	6210564	DC "Y" Power Extension Cable
None	6210561	DC Power Extension Cable
None	6210565	68-Pin SCSI #1 Cable, 120 cm
None	6210566	68-Pin SCSI #2 Cable, 60 cm
None	6210567	68-Pin SCSI #3 Cable, 12 cm
None	6210573	Miscellaneous Sensor Cable
None	6210562	Tape Drive Interface 2 Cable
None	6210563	Tape Drive Inport Solenoid Cable
None	6210542	White AC Cable
None	6210542	Black AC Cable
None	0325004	AC Line Filter
None	0455175	AC Power Switch
150-1890	0415692	Differential SCSI Terminator
370-2188	0525006	Data Cartridge
370-2189	0525005	Cleaning Cartridge
530-2515	Unknown	External SCSI Jumper Cable, HD68 to HD68
530-2352	0425034	External SCSI Cable, HD68 to HD68, 4M
565-1395 None None None 704-5684 805-1040 875-1807 875-1808 875-1809 875-1810	6210160 6210151 0425003 6210150 6211266 None 6211222 6211221 6211223 6211224	Service and Training Kit Training Video Serial Cable Permatex 82324 Lubricant Diagnostic and Manuals CD Sun Enterprise Tape Library 4/1800 Installation Guide Operators Guide Planning and Installation Guide Service Manual Diagnostic Software Manual
805-5571	None	L1800 Diagnostic Software User's Manual
805-5572	None	L1800 Accessory Kits
805-5573	None	L1800 Tape Drive Upgrade Instructions
805-5574	None	L1800 SCSI Exerciser Installation Guide
805-5575	None	L1800 Operator's Guide
805-5576	None	L1800 Facilities Planning and Installation Guide
805-5578	None	L1800 Control Panel
805-5579	None	L1800 Unpacking Instructions
