Sun StorEdge [tm] L400

LIB8MM1-400G	LIB8MMB-400G	LIB8MMC-400G
400-800GB 20-40GB 8 mm Deskside w Scanner 2 Tape Drives	400-800GB 20-40GB 8 mm Deskside w Scanner 1 Tape Drive	400-800GB 20-40GB 8 mm Rack Mount w Scanner 1 Tape Drive

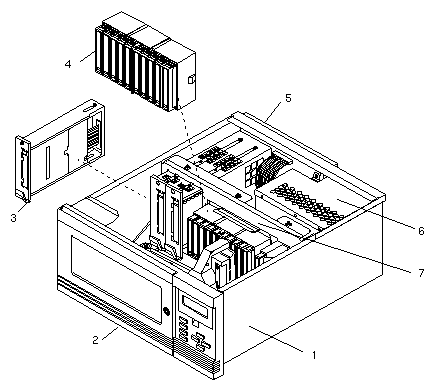

CODE SUN PART # DESCRIPTION

1
1 370-2392
370-3257 Horizontal EXB-220 without Tape Drives or Scanner
Deskside EXB-220 without Tape Drives or Scanner

2
2 370-2393
None Horizontal Front Panel Assembly (use T10 Torx)
Deskside Front Panel Assembly (use T10 Torx)

3 370-2401
None 20-40GB EXB-8900 Tape Drive with Carrier
Empty Tape Drive Carrier

4 370-1884 Empty 10 Tape Magazine ¹

5 370-2397 Differential SMCS Card Assembly

6 370-2399 160 Watt Power Supply

7 370-2402 Rotor Assembly

NS 370-1874 Barcode Scanner (use T10 and T20 Torx)

NS 370-2403 Long Axis Belt (use T10 and T20 Torx)

NS 370-2815 Slide Rail Set

NS 370-2400 SCSI Jumper Plug, 55 mm

NS 370-2398 Differential SCSI Terminator

NS 370-1904 Tape Magazine Dust Cover

NS 370-1905 Door Wipes

NS 370-2395 170M 8 mm AME Tape

NS 370-2396 Cleaning Kit

NS 370-1912 Power Cord

NS 330-1651 Key

802-7985
875-1805 SPARCstorage 8/400 Service Manual
EXB-220 Maintenance

¹ A magazine loaded with ten 112M data tapes and one cleaning tape is available from eSun as Option BT-8MM-10PACKCL.
