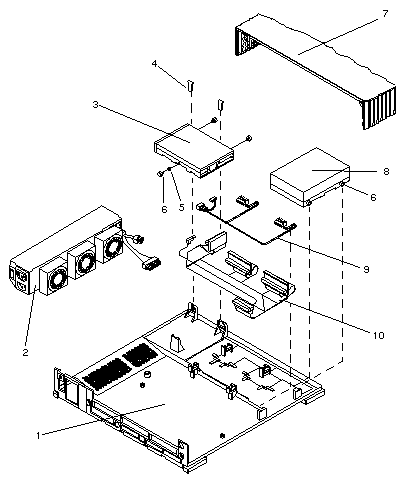

| CODE |
PART # |
DESCRIPTION |
1
- |
599-1846
540-2512 |
Base Assembly (replaced 540-2498 and 540-2150)
Base Sub Assembly (replaced 540-2151) |
2
2 |
300-1081
300-1255 |
140 Watt Power Supply
140 Watt Power Supply (same as 300-1081-04) |
| 3 |
370-1420 |
3.5" Floppy Disk Drive, Triple Density |
| 4 |
330-1448 |
Floppy Drive Clip |
| 5 |
240-2075 |
3.5 mm Washer |
| 6 |
330-1390 |
#6-32 Drive Mounting Grommet |
7
7 |
540-2148
540-2499 |
Top Cover Assembly (obsolete)
Top Cover Assembly |
8
-
-
- |
540-2165
370-1392
240-8018
330-1390 |
424MB Disk Drive Assembly
 424MB Disk Drive, Seagate ST1480N
#6 Lock Washer
#6-32 Drive Mounting Grommet |
8
-
-
- |
540-2420
370-1546
240-8018
330-1390 |
1.05GB Disk Drive Assembly (obsolete)
1.05GB Disk Drive, Seagate ST11200N
#6 Lock Washer
#6-32 Drive Mounting Grommet |
| 8 |
370-1684 |
535MB Disk Drive, Conner CP30540 |
| 8 |
370-1843 |
535MB Disk Drive, Seagate ST5660N |
| 8 |
370-1546 |
1.05GB Disk Drive, Seagate ST11200N |
| 8 |
370-1710 |
1.05GB Disk Drive, Seagate ST31200N |
| 8 |
370-1963 |
1.05GB Disk Drive, Conner CFP1080S |
| 8 |
370-1709 |
2.1GB Disk Drive, Seagate ST12400N |
| 8 |
370-1929 |
2.1GB Disk Drive, Conner CFP2105S |
| 8 |
370-2070 |
2.1GB Disk Drive, Seagate ST32430N |
| - |
240-1141 |
#6-32 x 1/4" Screw (6 required) |
| - |
330-1390 |
#6-32 Drive Mounting Grommet (2 required) |
| - |
330-1717 |
Drive Mounting Grommet (2 required) |
| - |
340-2939 |
Drive Mounting Bracket |
| 9 |
530-1848 |
DC Power Harness |
| 10 |
530-1847 |
LED, SCSI, and Floppy Cable Assembly |
| NS |
260-3059 |
Sun Logo |
| NS |
260-5927 |
SPARCstation 10 Nameplate |
