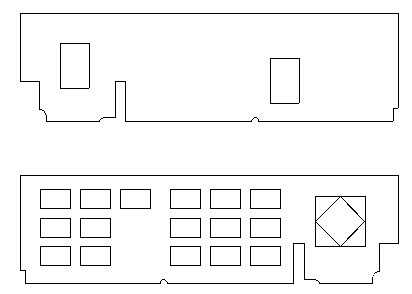

CG14 4MB 80ns 24-bit VSIMM

SS10SX

Options 345 / 347
501-2306

Screen Resolutions
1024 x 768 1024 x 768 1024 x 768 1024 x 800 1152 x 900 1152 x 900 1280 x 1024 1600 x 1280	60Hz 60Hz 70Hz 84Hz 66Hz 76Hz 66Hz 66Hz

UNIX ID: /dev/cgfourteen0

Notes

1. The minimum operating system is Solaris 2.3.
2. Solaris 2.3 requires the Solaris 2.3 Supplement CD, 704-4195-10.
3. Solaris 2.6 does not support XIL compute acceleration for the SX.
4. Install the first VSIMM in J0301 and the second VSIMM in J0202.
5. The Auxiliary Video Board is required if two VSIMMs are installed.
6. Use the sxconfig (1M) command to configure contiguous memory.
7. Use the cg14config (1M) command to change resolutions.

References

1. SPARCstation 10SX VSIMMs Installation, 801-2535.
2. SS10SX System Configuration Guide, 801-5498.
3. SS10SX and SS20 System Configuration Guide, 801-7287.
