GT Graphics Subsystem

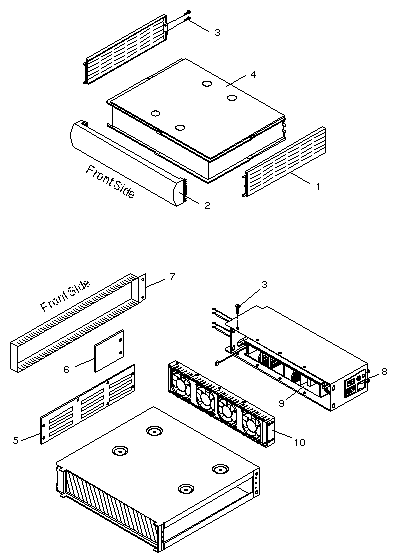

3-Slot VMEbus Logic Enclosure
| CODE |
PART # |
DESCRIPTION |
| 1 |
330-1067 |
End Panel, 42 cm X 11 cm |
| 2 |
330-1069 |
Front Bezel |
| 3 |
240-1372 |
M4 0.7 x 10 mm Screw |
| 4 |
330-1071 |
Side Panel, 42 cm X 59 cm |
| 5 |
501-1127 |
3-Slot VMEbus Backplane, Pressfit |
| 6 |
330-1144 |
Backplane Shield |
| 7 |
340-1461 |
Backplane EMI Cover |
| 8 |
370-1178 |
AC Switch, Fuse, and Filter Assembly |
| 9 |
300-1093 |
325 Watt Power Supply, Summit Rev >=M required |
| 10 |
540-2051 |
DC Fan Tray Assembly, 4 Fans |
| NS |
330-1089 |
Side Panel Screw Cover |
| NS |
340-1545 |
Air FIlter Assembly |
| NS |
340-2524 |
Foreplane EMI Cover |
| NS |
530-1684 |
SBus HSA to HGPFE Cable, 68-Pin to 68-Pin, 1.5M |
| - |
800-5264 |
Service Manual for the GT Graphics Subsystem |
|
