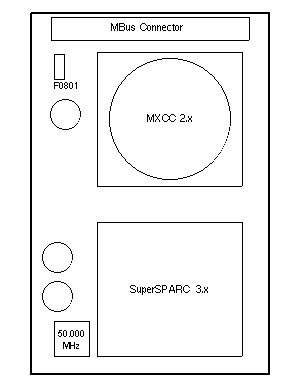

SM51 SuperSPARC Module

SS10 / SS630 / SS670 / SS690
Option 1163

501-2352
50MHz

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. Set the SS10 clock speed to 80MHz.
  5. The maximum MBus speed of the MXCC is 40MHz.
  6. The SS600MP requires Boot PROM 2.10.
  7. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

SM51 SuperSPARC Module

SS10 / SS630 / SS670 / SS690

501-2361
50MHz

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. The 501-2361-01 is for Sun internal use only.
  5. The 501-2361-01 is tested for operation at room temperature only.
  6. Set the SS10 clock speed to 80MHz.
  7. The maximum MBus speed of the MXCC is 40MHz.
  8. The SS600MP requires Boot PROM 2.10.
  9. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.
