SunLink Channel Adapter
SS670MP
370-1128 |
SS690MP
501-1460 |
| Board Set |
Board Set |

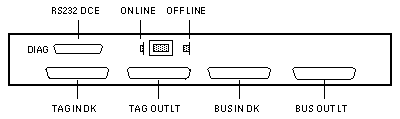

| Backpanel and Connectors |
 |
Power:
- 8.6 Amps @ +5Vdc
- 43.0 Watts
Notes
- Replace 370-1128 with 501-1460. Refer to FCO A0003-1.
- The Sun-3/110 and Sun 3004 CPU must be 501-1134-06, 501-1163-09,
501-1164-09, or greater. All 501-1208 and 501-1209 revisions are usable.
- In Sun-3/2XX systems with multiple SCA boards, the CPU must be 501-1100-08,
501-1206-06, or greater.
- The SunLink Channel Adapter must be >=501-1460-02 for use with the
Sun 3400 CPU.
- The Sun FDDI Board must be >=501-1276-02 for use with the SunLink
Channel Adapter.
- SunLink Release 7.0 Channel Gateway is required for use with the Sun
3400 CPU.
- The Sun 3400 CPU must be >=501-1550-10 for use with the SunLink
Channel Adapter.
- The Sun 4200 CPU, 501-1274 must be >=501-1274-13 for use with the
SunLink Channel Adapter.
- The SunLink Channel Adapter is not supported in Solaris >=2.2.
Reference
- SunLink Channel Adapter Configuration Procedures, 813-2040.

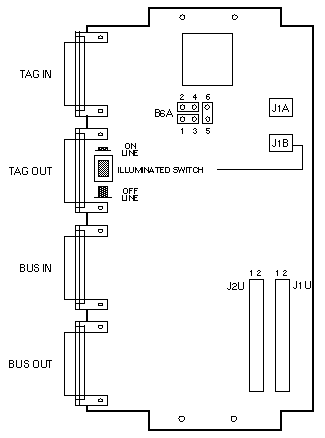

CIO Board
| Jumper Settings |
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| B6A |
1-3
2-4
5-6 |
 |
Channel to mainframe priority select
Out/In (gives Select-Out)
Factory setting |
| B6A |
1-2
3-5
4-6 |
 |
Channel to mainframe priority select
(gives Select-In) |
|

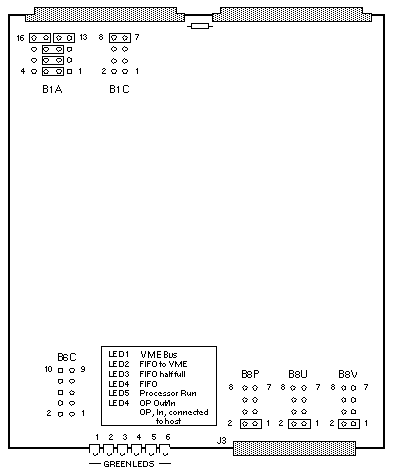

IBD Board
Jumper Settings
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| B1C |
7-8
Others |
In
Out |
VME bus request level BR gives level 3 |
| B1A |
2-3
6-7
10-11
13-14
15-16 |
In
In
In
In
In |
Bus grant In/Out BG0/BG3 gives level 3 |
| B6C |
All |
Out |
VME bus data transfer timeout |
| B8P |
7-8
3-4
5-6
7-8 |
In
Out
Out
Out |
Local processor external bus page
selection BS gives page 0 |
| B8U |
1-2
3-4
5-6
7-8 |
In
Out
Out
Out |
Interrupt acknowledge page selection
IACK gives page 0 |
| B8V |
1-2
3-4
5-6
7-8 |
In
Out
Out
Out |
Interrupt request page selection IREQ
gives page 0 and must be the same as
IACK |

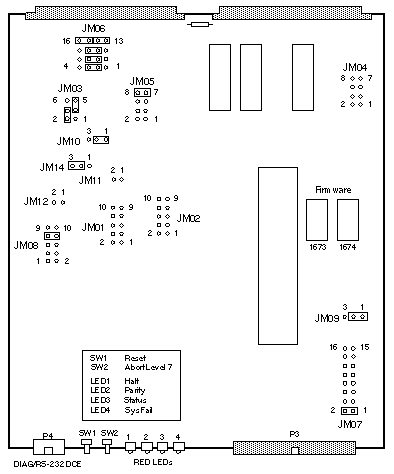

LCP Board
Jumper Settings
| JUMPER
| PINS
| SETTING
| DESCRIPTION
|
| JM01 |
All |
Out |
VME BERR timeout 67.1 seconds |
| JM02 |
All |
Out |
VME LBERR timeout 107.4 seconds |
| JM03 |
2-4
3-5 |
In
In |
SYSRESET Out disabled
SYSRESET In disabled |
| JM04 |
1-2*
3-4
5-6
7-8 |
Out*
Out
Out
Out |
1-2, Out, for 1st board (chat0)
1-2, In, for 2nd board (chat1) |
| JM05 |
1-2
3-4
5-6
7-8 |
Out
Out
Out
In |
Bus request level 0
Bus request level 1
Bus request level 2
Bus request level 3 |
| JM06 |
2-3
6-7
10-11
13-14
15-16 |
In
In
In
In
In |
Select bus grant 3 |
| JM07 |
1-2 |
In |
Local DTACK delay 100ns |
| JM08 |
1-2
3-4
5-6
7-8
9-10 |
Out
Out
Out
In
Out |
Unclaimed grant timeout 262ms |
| JM09 |
1-2
2-3 |
In
Out |
EPROM size 128KB |
| JM10 |
1-2
2-3 |
In
Out |
Arbitration - release when done |
| JM11 |
1-2 |
Out |
System controller function enabled |
| JM12 |
1-2 |
Out |
VMEbus priority arbitration |
| JM14 |
1-2
2-3 |
Out
In |
Minimum address strobe 60ns |
|
