Zytec 22914300
268 Watt Power Supply

Options 726 / 727
300-1085

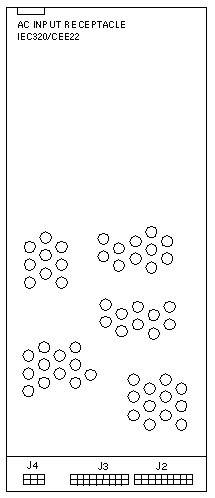

J2 J3 PIN COLOR VOLTAGE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Red Red Black Black Black Black Blue Blue Red Red Black Black Black Black Blue Blue +5 +5 Gnd Gnd Gnd Gnd +12 +12 +5 +5 Gnd Gnd Gnd Gnd +12 +12 J4 PIN COLOR VOLTAGE 1 2 3 4 5 6 Blue Blue Red Black Black Black +12 +12 +5 Gnd Gnd Gnd

DC Output

+5.1Vdc	+12Vdc	+12Vdc
8.0A x 2	7.0A x 2	1.5A

Fuse

10 Amps @ 250 Volts
