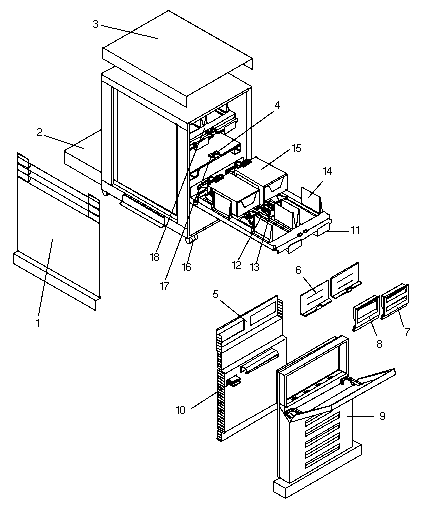

Differential SCSI Expansion Pedestal
| 762 |
763 |
764 |
2 2.1GB Disks
5.0GB 8 mm and CD-ROM |
4 2.1GB Disks |
4 2.1GB Disks
5.0GB 8 mm and CD-ROM |
| CODE |
PART # |
DESCRIPTION |
| 1 |
540-1846 |
Side Cover |
| 2 |
300-1106 |
800 Watt Power Supply |
| 3 |
340-1898 |
Top Cover |
| 4 |
530-1811 |
DC Harness, Power Supply to Right Side |
| 5 |
340-2534 |
Front EMI Cover, without Switch Assembly |
| 6 |
340-2292 |
Blank EMI Cover Filler Panel |
| 7 |
330-1192 |
Blank Bezel Insert |
| 8 |
330-1210 |
Front Bezel Half-Height Insert |
| 8 |
330-1284 |
Front Bezel Full-Height Insert |
9
NS
NS |
540-1939
240-0558
240-0557 |
Front Bezel Assembly
 Miniball Receptacle
Miniball Fastener |
10
NS
NS
NS
NS |
540-1765
501-1531
540-2136
330-1373
340-2491 |
LED/Switch Assembly
LED/Switch PCB
Remote Switch Assembly
 Switch
Switch Bracket |
11
11
12
13 |
540-2399
340-2884
530-2034
530-1903 |
Empty Differential SCSI Tray
Differential SCSI Tray
Differential SCSI Tray DC Harness
Internal SCSI Cable, 68-Pin to 50-Pin, 2380 mm |
| 14 |
340-2828 |
Peripheral Mounting Bracket |
| 15 |
370-1412 |
2.1GB Disk Drive, Seagate 990002-002 |
| 16 |
340-2129 |
Caster |
| 17 |
530-1841 |
DC Harness, Power Supply to Fans and Left Side |
| 18 |
340-2575 |
Peripheral Tray, Single-Ended SCSI |
| PART # |
DESCRIPTION |
| 150-1785 |
Single-Ended Active Terminator, HD50 |
| 150-1890 |
Differential Terminator, HD68 |
| 240-1905 |
Cable Mounting Clamp |
| 340-2535 |
Rear EMI Cover |
| 340-2543 |
Rear EMI Cover Filler Panel |
| 370-1297 |
2.3GB 8 mm Tape Drive, Full-Height, Option 802 |
| 370-1347 |
SunCD CD-ROM, Half-Height, Option 559 |
| 370-1415 |
5.0GB 8 mm Tape Drive, Full-Height, Option 812 |
| 530-1619 |
System Grounding Cable, 2.0M |
| 530-1824 |
LED/Switch DC Harness, 530-1841 to Switch |
| 530-1842 |
CD-ROM Grounding Cable |
| 530-1836 |
External SCSI Cable, HD50 to HD50, 2.0M |
| 530-1852 |
External SCSI Cable, HD50 to HD50, 4.0M |
| 530-1883 |
External SCSI Cable, HD68 to HD68, 20 cm |
| 530-1884 |
External SCSI Cable, HD68 to HD68, 80 cm |
| 530-1885 |
External SCSI Cable, HD68 to HD68, 2.0 M |
| 530-1886 |
External SCSI Cable, HD68 to HD68, 12.0 M |
| 530-2022 |
External SCSI Cable, HD68 to HD68, 1.0 M |
| 540-1749 |
Rear Bumper |
| 540-1847 |
Rear Bezel |
| 540-2157 |
Three-Fan Assembly, 45 CFM each |
540-2196
340-2575
340-2444
530-1675
530-1676 |
Empty Single-Ended SCSI Tray
Single-Ended SCSI Tray
Peripheral Mounting Bracket
Peripheral Tray DC Harness, Single-Ended SCSI
Internal Single-Ended SCSI Cable, 50-Pin to 50-Pin |
540-2203
340-2575
530-1675
530-1676 |
Empty Single-Ended SCSI Tray
Single-Ended SCSI Tray
Peripheral Tray DC Harness, Single-Ended SCSI
Internal Single-Ended SCSI Cable, 50-Pin to 50-Pin |
| 800-7285 |
Sun SCSI Expansion Pedestal Installation Manual |
| 800-7286 |
Sun SCSI Expansion Pedestal Service Manual |
|
