Seagate 97229-11G (911MB)
Equipment Number PA8Y2
8" 3600 RPM IPI-2 6MB/Sec
Options 716 / 717 / 719 / 720 / 741L / 742L / 743L / 744L / 745L

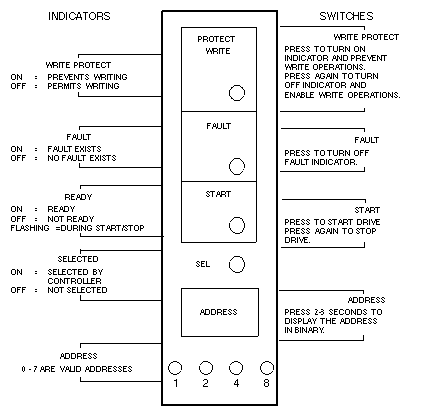

Operator Panel
370-1355
Note
- Each drive power-on sequence is delayed for a time equal to five seconds
times its address. For example, if the address is 3, the drive starts after
a 15-second delay.
Disk Enclosure
| 370-1351 |
370-1352 |
540-2005 |
540-2008 |
Rackmount Disk
w/o Power Supply
w/o Tray |
Pedestal Disk
w/o Bracket |
Rackmount Disk
w Power Supply
w Tray |
Pedestal Disk
w Bracket |
Control Board Dip Switch Settings
Dip Switch 1, Switches 1,2,3,4
| DRIVE |
SWITCH 4 |
SWITCH 3 |
SWITCH 2 |
SWITCH 1 |
| 0 |
Closed |
Closed |
Closed |
Closed |
| 1 |
Closed |
Closed |
Closed |
Open |
| 2 |
Closed |
Closed |
Open |
Closed |
| 3 |
Closed |
Closed |
Open |
Open |
| 4 |
Closed |
Open |
Closed |
Closed |
| 5 |
Closed |
Open |
Closed |
Open |
| 6 |
Closed |
Open |
Open |
Closed |
| 7 |
Closed |
Open |
Open |
Open |
|
|
Dip Switch 1, Switches 5 and 6
| SWITCH |
DESCRIPTION |
| 5 |
Not used |
| 6 |
Open = Write protected
Closed = Write enabled |
|
|

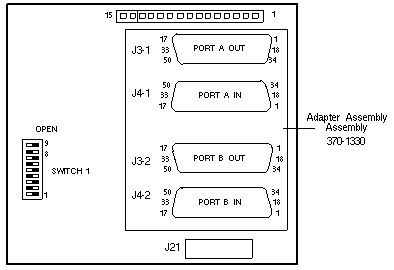

I/O Board Rear View
|
Power Connector
| 15 |
14 |
13 |
12 |
11 |
10 |
9 |
8 |
7 |
6 |
5 |
4 |
3 |
2 |
1 |
+24
RTN |
+24 |
+24 |
+24 |
+24
RTN |
+24
RTN |
N/C |
PWR
OK |
-12 |
-5 |
-5 |
GND |
GND |
+5 |
+5 |
|
|
Dip Switch 1 Settings
| SWITCH |
SETTING |
DESCRIPTION |
1
2
3
4 |
Open
Closed
Open
Closed |
Drive starts when DC Power is applied
Disable Port B
Enable Port A
Disable internal diagnostics |
5
6
7
8 |
Open
Closed
Open
Closed |
1D 3
1D 2
1D 1
1D 0 |
ID Microcode. Do NOT Change
"
"
" |
| 9 |
Open |
Slave/Master spindle sync-slave |
|
Notes
- The 911MB Disk requires minimum ISP-80 firmware 525-1023-05,
525-1024-07, and 525-1025-07.
- ISP-80 501-1539-05 and 501-1855-01 contain the minimum firmware required
by the 911MB Disk.
- Upgrade lower revision ISP-80 Controller boards with Option X2080A.
- Use terminator 370-1220-01 on the Port A/B Out connector.
- Disable an unused port with the Port Enable/Disable switch.
- Do NOT install a terminator on an unused port.
- There are cooling vents on the cover of 911MB Drive 370-1351.
Do NOT install this drive in the Sun Expansion Pedestal.
- There are no cooling vents on the cover of 911MB Drive 370-1352.
Do NOT install this drive in the Sun 56" Rack.
- Power Supply 300-1052 does not support the 911MB Drive.
- Use Power Supply 300-1075 in the Sun Expansion Pedestal.
References
- IPI8-1000/2HP Disk Drive Configuration and Installation Procedures for
the Sun Expansion Pedestal, 813-5377.
-
PI8-1000 and IPI8-1000/2HP Disk Drive Configuration and Installation
Procedures for the Sun 56-inch Cabinets, 813-1109.
|
