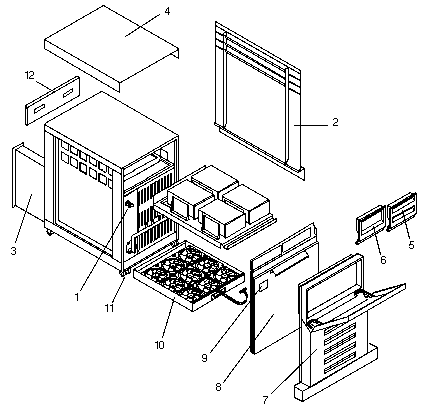

| CODE |
PART # |
DESCRIPTION |
| 1 |
501-1832 |
12-Slot Backplane, Pressfit with DC Harness
Cutout |
| 2 |
540-1846 |
Side Cover |
| 3 |
300-1089 |
925 Watt Power Supply |
| 4 |
340-1898 |
Top Cover |
| 5 |
330-1192 |
Blank Bezel Insert |
| 6 |
330-1210 |
Front Bezel Half-Height Insert |
| 6 |
330-1284 |
Front Bezel Full-Height Insert |
7
NS
NS |
540-1939
240-0558
240-0557 |
Front Bezel Assembly
 Miniball Receptacle
Miniball Fastener |
| 8 |
340-2291 |
Front EMI Cover, without Switch Assembly |
| NS |
340-2292 |
Blank EMI Cover Filler Panel |
| NS |
340-2444 |
Peripheral Mounting Bracket |
9
NS
NS |
540-2136
330-1373
340-2491 |
Switch Assembly
Switch
Switch Mounting Bracket |
10
NS
NS
NS |
540-1751
370-1214
530-1640
370-1732 |
Fan Tray Assembly, 9 Fans 1
DC Fan Assembly with connector, 150 CFM
Fan Tray DC Harness for Fan 370-1732
DC Fan Assembly, 150 CFM |
| 11 |
340-2129 |
Caster |
| 12 |
340-2293 |
Rear EMI Cover |
| NS |
150-1785 |
External Active Terminator, 50-Pin SCSI-2 |
| NS |
260-3293 |
Sun Logo |
| NS |
260-5305 |
SPARCserver 670MP Nameplate |
| NS |
370-1205 |
150MB Tape Drive, Half-Height, QIC-150 |
| NS |
370-1297 |
2.3GB 8 mm Tape Drive, Full-Height |
| NS |
370-1415 |
5.0GB 8 mm Tape Drive, Full-Height |
| NS |
370-1347 |
644MB CD-ROM, Half-Height |
| NS |
370-1377 |
1.3GB Disk Drive, Seagate 976002-012/ST41600N |
| NS |
530-1675 |
Peripheral Tray DC Harness |
| NS |
530-1676 |
Internal SCSI Bus Cable |
| NS |
530-1842 |
Grounding Cable, CD-ROM, 12.7 cm |
| NS |
530-1829 |
SCSI Cable, 50-Pin SCSI-2 to DD-50SA, 1.0M |
| NS |
540-1848 |
Rear Bezel |
| NS |
540-1749 |
Rear Bumper |
|
800-3255 |
12-Slot Office Pedestal Field Service Manual |
