AC Power Sequencer
Remote and Local Bus Connectors

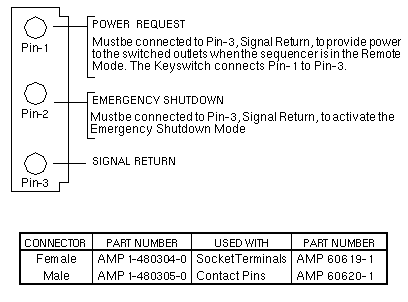

Remote I/O Connectors J6, J7, J8, J9
A parallel circuit connects J6, J7, J8, and J9. Inputs to the Remote
I/O Connectors are activated by mechanical toggle, key switch,
transistor, integrated circuit, or thermoswitch with a normal open
configuration.
Cable Description
Use 3-conductor, #22 AWG stranded wire.

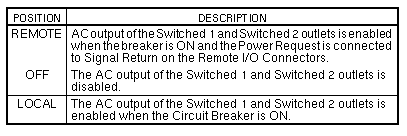

Remote - OFF - Local Switch
|
