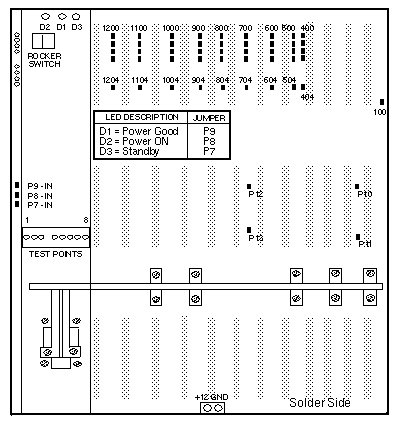

Sun-4/370/470 / SS670MP

501-1598
Pressfit

Test Points Description

TEST
POINT		 DESCRIPTION TEST
POINT		 DESCRIPTION
1 +5 5 +12
2 GND 6 -5.2
3 +12 Motor 7 Chassis ground
4 -12 8 Ground

Power

2.1 Amps @ +5Vdc
10.5 Watts

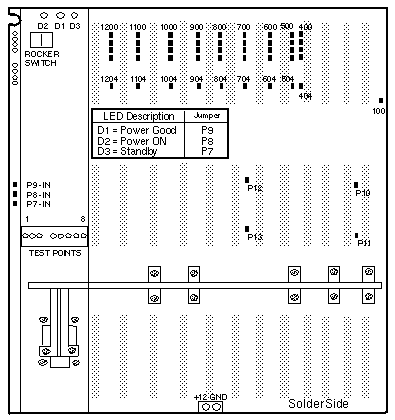

Sun-4/370/470 / SS670MP

501-1832
Pressfit

Test Points Description

TEST
POINT		 DESCRIPTION TEST
POINT		 DESCRIPTION
1 +5 5 +12
2 GND 6 -5.2
3 +12 Motor 7 Chassis ground
4 -12 8 Ground

Power:

2.1 Amps @ +5Vdc
10.5 Watts
