Sun 4100

Sun 4/110/150

501-1199
501-1512		 501-1237
501-1513		 501-1462
501-1514
8MB w/o FP 8MB w FPC 16MB w/o FPC
501-1463
501-1515		 501-1464
501-1516		 501-1465
501-1517
16MB w FPC 32MB w/o FPC 32MB w FPC

Power: with FPU

13.8 Amps @ +5Vdc
0.1 Amps @ -5Vdc
69.5 Watts

Sun 4100

Sun 4/110/150

501-1656 501-1657 501-1658
8MB w/o FPC 8MB w FPC 1 6MB w/o FPC 1
501-1659 501-1660 501-1661
6MB w FPC 32MB w/o FPC 32MB w FPC

Power: with FPU

13.8 Amps @ +5Vdc
0.1 Amps @ -5Vdc
69.5 Watts

501-1199 / 501-1237 / 501-1462 / 501-1463 / 501-1464 / 501-1465
501-1512 / 501-1513 / 501-1514 / 501-1515 / 501-1516 / 501-1517
501-1656 / 501-1657 / 501-1658 / 501-1659 / 501-1660 / 501-1661

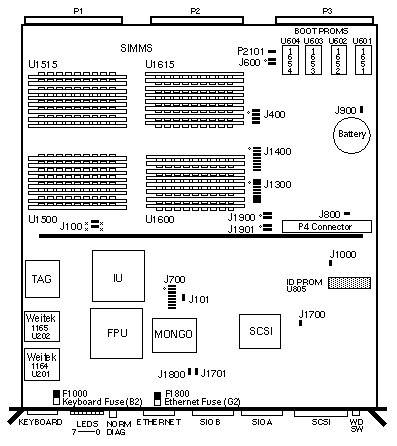

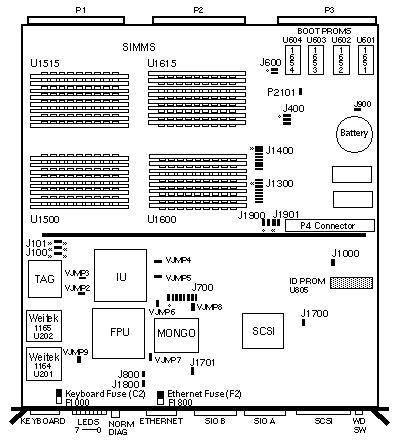

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J0101 1-2 In Enable 57.1MHz clock
J0600 1-2
3-4		 In
Out		 27512 Boot PROM
27256 Boot PROM
J700 1-2
3-4
5-6
7-8
9-10
11-12
13-14
15-16		 In
In
In
In
In
In
In
In		 VME interrupt level 1
VME interrupt level 2
VME interrupt level 3
VME interrupt level 4
VME interrupt level 5
VME interrupt level 6
VME interrupt level 7
Not used
J800
J900
J1000		 1-2
1-2
1-2		 Out
Out
In		 Force reset
In = Shorts 3V battery
Enable UART clock
J1700
J1701		 1-2
1-2		 In
Out		 Enable Ethernet clock
Ethernet Level 2 (In = level 1)
J1800 1-2
1-2
1-2		 Out
Out
In		 Auto sense Ethernet*
Force Thin Ethernet
Force Thick Ethernet
J1900 1-2
3-4		 Out
In		 CPU is VME requester only
CPU is VME requester
J1901 1-2
3-4		 Out
In		 CPU is VME reset slave
CPU is VME reset master
P2101 1-2 In Enable VME system clock
* Default setting. The auto sense feature requires >=30 milliamps on the +12V return
(example - DEC DELNI).

Notes

  1. The Type-4 Keyboard requires CPU >=501-1199-11 or >=501-1237-11.
  2. The 501-1384 FPU2 is supported on CPU boards 501-1512, 501-1513, 501-1514, 501-1515, 501-1516, and 501-1517.
  3. The final software release for the Sun 4100 is Solaris 2.4.

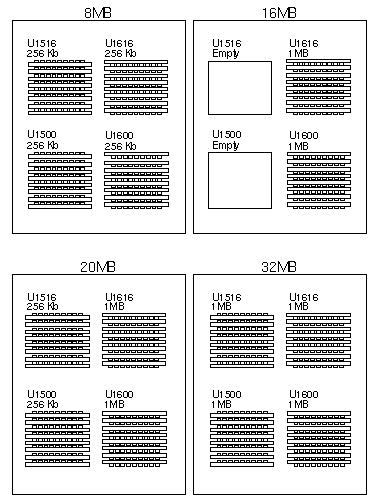

J100 Cache Line and J400 Memory Strobe
MEMORY SIZE 8MB 16MB 20MB 32MB
SIMM SIZE 256KB 1MB 1MB/256KB 1MB
J100 Pin 1-2 In Out In Out
J100 Pin 3-4 Out In Out In
J400 Pin 1-2 Out In Out In
J400 Pin 3-4 In Out Out In
J400 Pin 5-6 In In In Out

J1300 SIMM Addressing Mode
SIMM
TYPE		 MEMORY
SIZE		 8MB 16MB 20MB 32MB
256KB 1MB 1MB/256KB 1MB
Same* Pin 1-2 In Out Out In
Different* Pin 3-4 Out In In Out
256KB Pin 5-6 In Out In Ou
1MB Pin 7-8 Out In Out In
2MB Pin 9-10 Out Out Out Out
<32MB Pin 11-12 In In In Out
32MB Pin 13-1 Out Out Out In
Unused Pin 15-16 Out Out Out Out

J1400 SIMM Addressing Mode
SIMM
TYPE		 MEMORY
SIZE		 8MB 16MB 20MB 32MB
256KB 1MB 1MB/256KB 1MB
Same* Pin 1-2 In Out Out In
Different* Pin 3-4 Out In In Out
256KB Pin 5-6 In Out Out Out
1MB Pin 7-8 Out In In In
2MB Pin 9-10 Out Out Out Out
<32MB Pin 11-12 In In In Out
32M Pin 13-14 Out Out Out In
Unused Pin 15-16 Out Out Out Out

* Same/Different correspond to sets of 256KB or 1MB SIMMs

Sun 4100

SIMM Configurations

501-1314 501-1466
256KB SIMM 1MB SIMM

Reference

Sun 4100 Board Set Configuration Procedures, 813-2049.
