Sun 4200

Sun-4/260/280

501-1274 501-1491 501-1522
w FPC-6/4 w FPU-2
2-hi Backpanel		 w FPC-6/4
2-hi Backpanel

Power

17.2 Amps @ +5Vdc
1.3 Amps @ -5Vdc
0.4 Amps @ +12Vdc
98.0 Watts

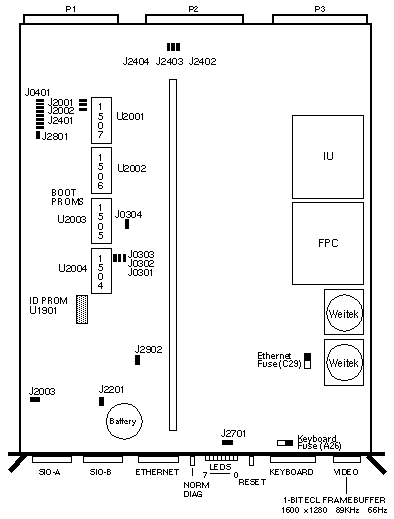

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J2701 1-2 Out Debug jumper
J2003 1-2 In Connect 3V battery
J2201 1-2 In SCC (UART)clock enable
J2902
J2404		 1-2
1-2		 Out
Out		 Enet Level 2 (IN for level 1)
Null
J0304
J0303
J0302
J0301		 1-2
1-2
1-2
1-2		 In
In
In
Out		 Enable VME clock
16 MHz clock enable
46.153 MHz clock enable
External clock
J2801 1-2 In Enable system DVMA
J0401 1-2
3-4
5-6
7-8
9-10
11-12
13-14
15-16		 In/Out
In
In
In
In
In
In
In		 Null
VME interrupt level 1
VME interrupt level 2
VME interrupt level 3
VME interrupt level 4
VME interrupt level 5
VME interrupt level 6
VME interrupt level 7
J2001
J2002
J2401		 1-2
1-2
1-2		 In
Out
Out		 Select 27512 PROM
Select 27256 PROM
CPU is VME requester only
J2402
J2403
J2404		 1-2
1-2
1-2		 In
Out
In		 CPU is arbiter/requester
CPU is reset slave
CPU is reset master

Notes

  1. 501-1274 must be >=501-1274-12 to use with the Type-4 Keyboard.
  2. 501-1274 must be >=501-1274-13 to use with the Xylogics 7053.
  3. The Xylogics 7053 requires CPU EPROM 1.7 or greater.
  4. Boot PROM 3.0 is required when more than two 16MB memory boards are used.
  5. The final software release for the Sun 4200 is Solaris 2.4

Reference

Sun-4200 CPU Board Configuration Procedures, 813-2031.
