Maxtor XT-8760S (669MB)

5 1/4" 3600 RPM Single Ended SCSI
Sun-4/330/370/470

Options 561 / 563 / 565 / 566

370-1319 370-1326 555-1151
1098618-B
Black Bezel
Green LED
3 1/4" Height		 1098778-B
No Bezel
No LED
3 1/4" Height		 FS0019-01- 6
No Bezel
No LED
w Bracket

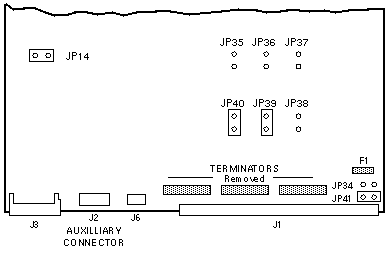

Bottom View

Note

All other jumpers on this board are set by the manufacturer. Do NOT change these settings.

End View

Address Description

The address is set on the J2 Adapter installed in the J2 Auxiliary connector, the Address Select switch on the External Storage Module, or on Jumpers JP35, JP36, and JP37. Set the address at only one location.

J2 Adapter Circuitry

External Storage Module

Orient Pin-1 of Address Select Switch Cable 530-1659
with ID4 on the J2 Adapter.

J2 Auxiliary Connector with Adapter 811-1682-01

JUMPER SETTING DESCRIPTION
1,2,4 Out Target 0
1 In Target 1
2 In Target 2
1,2 In Target 3

JP35, JP36, and JP37

JUMPER SETTING DESCRIPTION
JP35, JP36, JP37 Out Target 0
JP35 In Target 1
JP36 In Target 2
JP35, JP36 In Target 3

Option Jumper Settings

JUMPER SETTING DESCRIPTION
JP14 In Spindle starts at power on
JP38 Out No motor delay at power on
JP40 In Enable parity detection
JP41 In Drive provides internal terminator power
JP34 Out Terminator power option

Notes

  1. Drive address selection cannot be set on Auxiliary Connector J2 unless the adapter is installed.
  2. The J2 Adapter must be installed in order for the ID Select Switch on the External Storage Module to function
  3. The Maxtor drive does not fit into the lower drive position of External Storage Modules manufactured prior to October 1990. Remove the vertical stop block with 10-Inch End Cutter 250-1074-01.

References

  1. 5-1/4" SCSI Disk Drive Installation and Configuration for Sun Office Pedestals, 813-2048-11.
  2. Revised Removal/Replacement Procedures for Sun ESM and EEM Storage Units, 814-3044-01.
