Seagate ST41600N (1.3GB)

976002-012 Elite-1 Family
5 1/4" 5400 RPM Single Ended SCSI

Sun-4/470 / SS630MP / SS670MP
Option 571

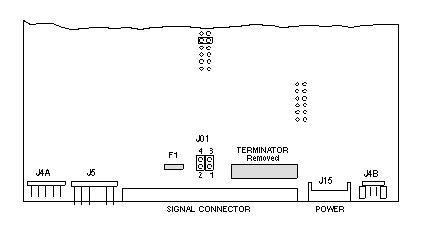

Top View

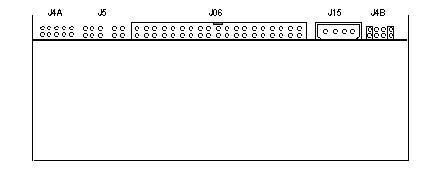

End View

In the Desktop Storage Module, orient Pin-1 of the Address Select Switch Cable with ID2 on J5. Remove all jumpers from J4A.

Power

2.4 Amps @ +5Vdc

2.1 Amps @ +12Vdc

37.2 Watts

Jumper Settings

Jumper J4A	Jumper J5	Jumper J4B

J5*

JUMPER	SETTING	DESCRIPTION
ID0,ID1,ID 2	Out	Drive ID select, Target 0
ID0	In	Drive ID select, Target 1
ID1	In	Drive ID select, Target 2
ID0,ID1	In	Drive ID select, Target 3

* Factory configurations do not use shunts at Jumper J5.

J4B

JUMPER	SETTING	DESCRIPTION
SDO	In	Spinup Delay = 10sec x Target ID
SCO	Out	Spinup according to SD0 setting
SCP	Out	Parity enabled
SWP	In	Sweep cycle enabled

J01

JUMPER	SETTING	DESCRIPTION
1-2		The drive supplies TERMPWR to its own terminator. It does not supply TERMPWR to the SCSI bus.
2-4		The drive supplies no TERMPWR. The initiator supplies TERMPWR to the bus.
1-3 2-4	In In	The drive supplies TERMPWR for the external terminator at the end of the daisy chain. This option is recommended only for the last drive on a daisy chain.

Notes

1. The minimum operating system is SunOS 4.1.1.
2. SunOS 4.1.1 Sun-4c requires the 1.3GB Disk Drive Enhancement (esp.o, sd.o, and format.dat).
3. SunOS 4.1.1 Rev B Sun-4c requires the 1.3GB Disk Drive Enhancement (esp.o and sd.o).
4. SunOS 4.1.1 Sun-4 requires the 1.3GB Disk Drive Enhancement (format.dat).
5. Jumper J4A uses 2 mm shunts. Jumper J5 can be configured using 2.54 mm shunt 130-0272. The Target ID is the Boolean OR of J4A and J5. Do NOT install shunts in both locations. Do NOT install shunts at J4A when the address select switch cable is installed.
6. The 1.3GB Disk Drive is not supported inside Sun 12-Slot Office Pedestals that use SCSI Interface PCBs 501-1493 and 501-1496.
7. The 1.3GB Disk Drive is not supported inside SCSI Peripheral Trays that use SCSI Interface PCB 501-1496.

References

1. Desktop Storage Module Service Manual, 800-6219-10.
2. Desktop Storage Module Service Manual, 800-7236-10.
3. Sun SCSI Expansion Pedestal Service Manual, 800-6402-11.
4. Sun SCSI Expansion Pedestal Service Manual, 800-7285-10.
5. 12-Slot Office Pedestal with Single Peripheral Tray, 800-6497-10.
