GP2 Graphics Processor

Sun-3/150/160/180/260/280/460/470/480
Sun-4/150/260/280/330/350/360/370/380
Sun-4/390/470/490

501-1268


UNIX ID: /dev/gpone0a-d

Power

12.1 Amps @ +5Vdc
60.5 Watts

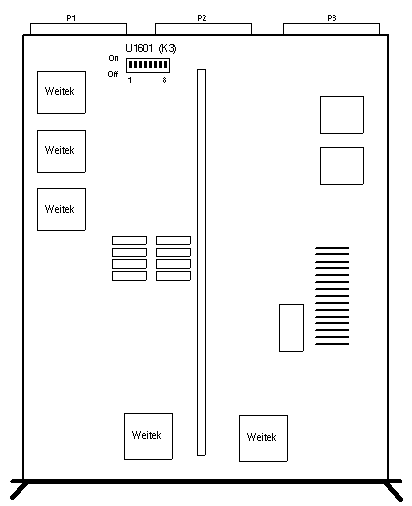

Switch Settings

DIP SWITCH SETTING DESCRIPTION
U1601-1
U1601-2
U1601-3
U1601-4
U1601-5
U1601-6
U1601-7
U1601-8		 Off
On
On
Off
On
On
On/Off
On/Off		 A18 address decode
A19 address decode
A20 address decode
A21 address decode
A22 address decode
A23 address decode
Not used
Not used

Notes

  1. The GP2 is used with the CG5 or CG9. Unbundled software is required for SunOS 3.5, 3.5.1, 3.5.2, Sys4-3.2, and Sys43.2.1. Unbundled software is not required for SunOS 4.0.
  2. The GP2 must be 501-1268-07 for use with CG9.
  3. The CG9 is not supported under OpenWindows Versions 2 or 3.

References

  1. Installation Notes for the GP2 and CG5 Boards, 800-2330.
  2. Configuration Procedures for the GP2 and CG5 Boards, 813-2059.

Last updated: December 2, 1996
