MG3 ECL Monochrome Frame Buffer
Sun-4/110/150/310/330/350/370/390/470/490
| 501-1247 |
501-1637 |
|
w 3/80 Backpanel |

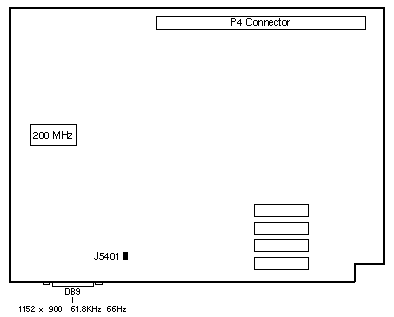

Jumper J5401 Settings
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| J5401 |
1-2
1-2
1-2 |
Out
In
Out |
Monitor auto select
Select 1600 x 1280 resolution
Select 1152 x 900 resolution |
UNIX ID: /dev/bwtwo0
Power: 501-1247
- 0.8 Amps @ +5Vdc
- 1.2 Amps @ -5Vdc
- 10.0 Watts
Notes
- Set EEPROM location 0x1f to 20.
- The auto-select feature requires cable 530-1336 or 530-1359.
- Hi Resolution Monitor 540-1427 must be Motorola revision T or
greater for the auto-select feature to operate.
Last updated: December 2, 1996
|
|
|
