Sun-3/E Color Frame Buffer

501-8029

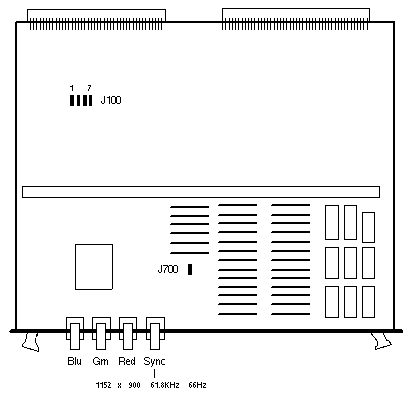

Jumper J100 Settings

JUMPER PINS SETTING DESCRIPTION
J100
J100
J100		 1-2
3-4
5-6		 In
Out
In		 Base address
=FF400000
J100 7-8 Out

UNIX ID: /dev/cgtwo0

Power:

4.0 Amps @ +5Vdc
20.0 Watts

Notes

  1. The Sun-3/E Color Frame Buffer requires a 3/E CPU, >=501-8028-07.
  2. This board requires SunOS 3.5 or greater.

Last updated: December 2, 1996
