Type-4 Keyboard

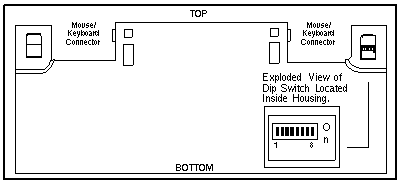

Underside of Keyboard
| DESCRIPTION |
DIP SWITCH |
CODE |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
| Sun-3/4 w >=4.0 or 386i |
Off |
- |
- |
- |
- |
- |
- |
- |
- |
| Sun-3 w <=3.5 |
On |
- |
- |
- |
- |
- |
- |
- |
- |
| United States |
- |
- |
- |
- |
- |
- |
- |
- |
00 |
| Belgium/French |
- |
- |
- |
- |
- |
- |
On |
- |
02 |
| French Canadian |
- |
- |
- |
- |
- |
- |
On |
On |
03 |
| Danish |
- |
- |
- |
- |
- |
On |
- |
- |
04 |
| German |
- |
- |
- |
- |
- |
On |
- |
On |
05 |
| Italian |
- |
- |
- |
- |
- |
On |
On |
- |
06 |
| Dutch |
- |
- |
- |
- |
- |
On |
On |
On |
07 |
| Norwegian |
- |
- |
- |
- |
On |
- |
- |
- |
08 |
| Portuguese |
- |
- |
- |
- |
On |
- |
- |
On |
09 |
| Spanish |
- |
- |
- |
- |
On |
- |
On |
- |
OA |
| Swedish/Finnish |
- |
- |
- |
- |
On |
- |
On |
On |
OB |
| Swiss/French |
- |
- |
- |
- |
On |
On |
- |
- |
OC |
| Swiss/German |
- |
- |
- |
- |
On |
On |
- |
On |
OD |
| United Kingdom |
- |
- |
- |
- |
On |
On |
On |
- |
OE |
Power
- 0.2 Amps @ +5Vdc
11.5 Watts
| PART # |
DESCRIPTION |
| 320-1002 |
Type-4 Keyboard, Mini-Din, US (obsolete) |
| 320-1005 |
Type-4 Keyboard, Mini-Din, US |
| 320-1006 |
Type-4 Keyboard, Mini-Din, German |
| 320-1007 |
Type-4 Keyboard, Mini-Din, Swiss German |
| 320-1008 |
Type-4 Keyboard, Mini-Din, Belgium and France |
| 320-1009 |
Type-4 Keyboard, Mini-Din, UK |
| 320-1010 |
Type-4 Keyboard, Mini-Din, Swiss French |
| 320-1011 |
Type-4 Keyboard, Mini-Din, Netherlands |
| 320-1012 |
Type-4 Keyboard, Mini-Din, Sweden and Denmark |
| 320-1013 |
Type-4 Keyboard, Mini-Din, Denmark |
| 320-1014 |
Type-4 Keyboard, Mini-Din, Norway |
| 320-1015 |
Type-4 Keyboard, Mini-Din, Italy |
| 320-1016 |
Type-4 Keyboard, Mini-Din, Spanish |
| 320-1017 |
Type-4 Keyboard, Mini-Din, Portugal |
| 320-1018 |
Type-4 Keyboard, Mini-Din, French Canadian |
|
|
| 530-1442 |
Keyboard Cable, Mini-Din to Mini Din, 2.0M |
| 530-1443 |
Keyboard Cable, Mini-Din to Mini Din, 4.6M |
| 530-1478 |
Keyboard Cable, DB-15 to Mini Din, 2.0M |
| 530-1479 |
Keyboard Cable, DB-15 to Mini Din, 4.6M |
| 530-1366 |
Sun386i Color and Keyboard Cable, DB21W4 to 4xBNC |
| 530-1383 |
Sun386i Monochrome & Keyboard Cable, DB21W4 to
DB9 |
| 530-1621 |
Sun386i Color & Keyboard Cable, DB21W4 to DB13W3 |
Last updated: December 2, 1996
|
