2.3GB 8 mm Tape Drive
Sun-4/370/390/470/490
SS670MP / SS690MP
Options 566 / 802 / 804
| 370-1297 |
370-1405 |
Exabyte EXB-8200
Black Bezel |
Exabyte EXB-8200
Lt Grey Bezel |

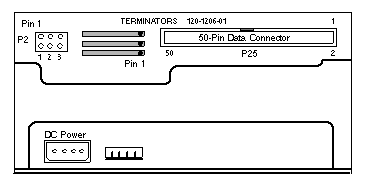

Rear View
Jumper P2
| SCSI ID |
(MSB) 1 |
2 |
(LSB) 3 |
| 4 |
In |
Out |
Out |
| 5 |
In |
Out |
In |
| 3 |
Out |
In |
In |
| 2 |
Out |
In |
Out |
| 1 |
Out |
Out |
In |
| 0 |
Out |
Out |
Out |
Address Select Switch Cable
 |
In the Desktop Storage Module and External Storage Module, orient
the Address Select Switch Cable as shown, and plug it into P2.
|
Power
- 4.0 Amps @ +5Vdc
- 1.2 Amps @ +12Vdc
- 34.4 Watts

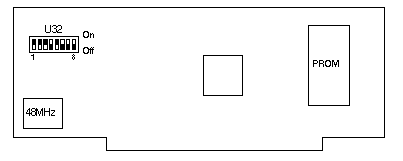

MX Card
Dip Switch U32
| SWITCH |
SETTING |
DESCRIPTION |
| 1 |
On |
Bypass memory test |
| 2 |
On |
Enable parity checking |
| 3 |
On |
Even byte disconnect |
| 4 |
Off |
Report busy status |
| 5 |
On |
Variable block mode on power up |
| 6 |
Off |
No disconnect during data transfer |
| 7 |
Off |
Not used |
| 8 |
Off |
P6 cartridge type |

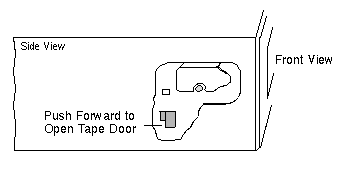

Manual Eject Switch
Notes
- The 112 Meter Tape part number is 370-1298-01.
- The Cleaning Kit part number is 370-1318-01.
- ECO WO_01575 enabled Parity checking on the MX card. Parity checking is
disabled on drives shipped prior to December 1991.
References
- Sun 2.3-Gbyte 8mm Tape Drive Configuration Procedures for 56-Inch
Data Center Cabinets, 813-2081.
