Emulex MT02

Sun-4/260/280/360/380

Options 511 / 514 / 516
370-1061 / 370-1235

KEY LED 1
(Green)		 LED 2
(Red)		 STATE
0 = Off 0 0 Power up reset clear
1 = On 1 1 Power up self-test passed
LED 1. Blinking, MT02 operating normally.
LED 2, ON, Do NOT remove the cartridge.

Power

1.5 Amps @ +5Vdc
0.04 Amps @ +12Vdc
8.0 Watts

Switch and Jumper Settings

DIP SWITCH SWITCH SETTING DESCRIPTION
SW1 1 Off Bit 0
2 Off Bit 1
3 On Bit 2-SCSI device address 04
4 Off Not used
5
6		 On
Off		 Archive Drive (Scorpion)
5
6		 On
On		 Wangtek Drive (5000E)
7 Off Drive type
8* Off SCSI bus parity check

* The Sun386i Tape assembly, 370-1179, includes the MT02 Controller and the Tape Drive. SW1, Switch 8, is ON for this application.

JUMPER SETTING DESCRIPTION
A-B*
C-D*		 In
Out		 EPROM Memory size select
E-F* In
Out		 Hi/Lo write current (Archive Drive)
Hi/Lo write current (Wangtek Drive)
G-H
J-K**
L-M**		 Out
Out
Out

* Jumpers A-B, C-D, and E-F are on the Emulex Rev. MW0210402 board. They are not on Rev. MT0210403 and MT0210103 boards. SW1, Switch 5 and Switch 6, control drive selection on the MT0210403 and MT0210203 boards.

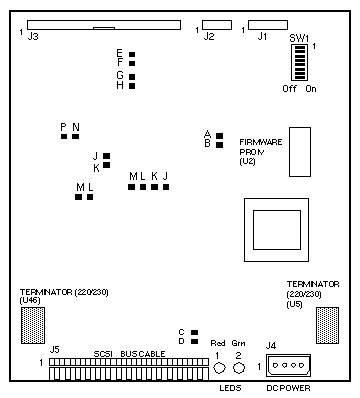

**Jumpers J-K and L-M are in one of the locations shown on the board layout drawing.

Note

Terminators U5 and U46 must be installed for Sun-3/160 and Sun-3/180 Plus configurations. Remove these terminators when the board is used with all other Sun-3 and Sun-4 Mass Storage Subsystems.

References

  1. Sun-3 Emulex MT02 Controller Configuration Procedures, 813-2011.
  2. 60 Mbyte Streaming Tape Drive with SCSI Controller Configuration Procedures, 814-1019.
