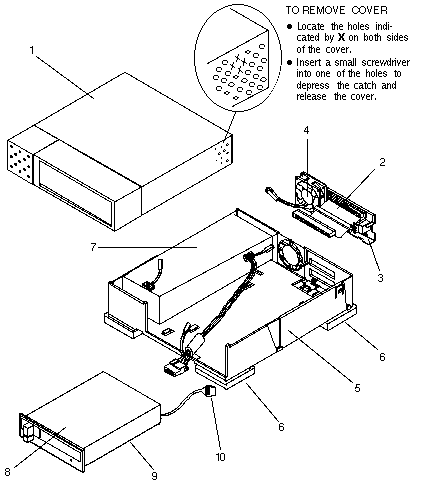

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-1778 |
Tape Drive Cover Assembly |
2
3
4
NS |
540-1776
150-1338
540-1802
150-1174 |
Fan/SCSI Connector/Address Select Assy (obs)
 Address Select Switch (obsolete)
Fan Assembly
2A Subminiature Fuse |
2
3
3
4
NS
NS |
540-1978
150-1557
150-2049
540-1802
150-1174
340-2839 |
Fan/SCSI Connector/Address Select Assembly
Address Select Switch (obsolete)
Address Select Switch
Fan Assembly
2A Subminiature Fuse
Fan EMI Gasket |
5
6 |
540-1773
330-1214 |
Base Assembly
Rubber Foot |
7
7
7 |
300-1037
300-1090
300-1105 |
35 Watt Power Supply (obsolete) 1
35 Watt Power Supply (obsolete)
44 Watt Power Supply |
| 8 |
370-1218 |
150MB Tape Drive, QIC-150, Archive 2150S |
| 9 |
340-1967 |
Tape Drive Bracket |
| 10 |
530-1454 |
Address Select Switch Cable, 5.25" |
| 10 |
530-1825 |
Address Select Switch Cable, 8.5" |
| NS |
240-1141 |
#6-32 x 1/4" Screw |
| NS |
150-1346 |
External Terminator, 50-Pin SCSI-2 |
| NS |
150-1785 |
External Active Terminator, 50-Pin SCSI-2 |
| NS |
530-1434 |
External Cable, 50-Pin, SCSI-2 to SCSI-2, 45 cm |
| NS |
530-1508 |
External Cable, SCSI-2 to SCSI-2, 80 cm |
| NS |
530-1793 |
External Cable, 50-Pin SCSI-2 to SCSI-2, 80 cm |
| NS |
530-1836 |
External Cable, 50-Pin SCSI-2 to SCSI-2, 2.0M |
| NS |
530-1852 |
External Cable, 50-Pin SCSI-2 to SCSI-2, 4.0M |
| NS |
800-4895 |
Desktop Storage Pack Field Service Manual |
