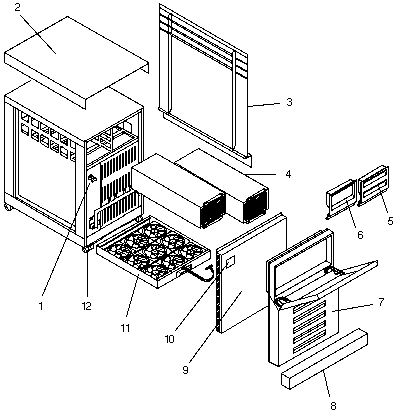

Sun-4/370/470
12-Slot VMEbus Logic Enclosure
Front View
Rear View
| CODE |
PART # |
DESCRIPTION |
| 1 |
501-1439 |
12-Slot Backplane, Pressfit (obsolete) 1
|
| 1 |
501-1598 |
12-Slot Backplane, Pressfit |
| 1 |
501-1832 |
12-Slot Backplane, Pressfit with DC Harness
Cutout |
| 2 |
340-1898 |
Top Cover |
| 3 |
340-1877 |
Side Cover (obsolete) |
| 3 |
540-1846 |
Side Cover |
| 4 |
|
Refer to Codes 18-24 |
| 5 |
330-1192 |
Front Bezel Blank Insert |
| 6 |
330-1210 |
Front Bezel Half-Height Insert |
| 6 |
330-1284 |
Front Bezel Full-Height Insert |
| NS |
340-2249 |
SCSI Tray Full-Height Bezel |
| NS |
340-1901 |
SCSI Tray Half-Height Bezel |
| 7 |
540-1731 |
Front Bezel Assembly (obsolete) |
| 8 |
540-1849 |
Front Bumper (obsolete) |
7 & 8
NS
NS |
540-1731
240-0558
240-0557 |
Front Bezel and Bumper Assembly
 Miniball Receptacle
Miniball Fastener |
| 9 |
340-1871 |
Front EMI Shield, without Switch Assembly |
10
NS
NS
NS |
540-1748
330-1212
330-1213
340-1936 |
Switch Assembly (obsolete)
Plastic Remote Switch (obsolete)
Plastic Remote Switch Block (obsolete)
Remote Switch Housing (obsolete) |
10
NS
NS |
540-2136
330-1373
340-2491 |
Switch Assembly
Switch
Switch Mounting Bracket |
11
NS
NS
NS
NS
NS |
540-1751
530-1482
540-1732
530-1640
370-1732
370-1214 |
Fan Tray Assembly, 9 Fans 2
Fan Tray DC Harness for Fan 540-1732
DC Fan Assembly, 150 CFM
Fan Tray DC Harness for Fan 370-1732
DC Fan Assembly, 150 CFM
DC Fan Assembly with connector, 150 CFM |
| 12 |
240-8503 |
Caster (obsolete) |
- The Sun 4400 CPU is not supported in the 501-1439 Backplane.
- The Fans are removable from 540-1751-04 and 540-1751-05 to allow
access to the fan tray screen during routine preventive maintenance.
The fans are not removable from 540-1751-02 or 540-1751-03.

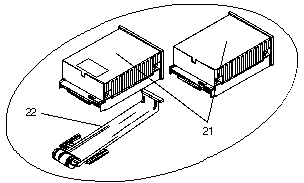

Peripheral Tray
Dual Disk Drives
Disk Drive and Tape Drive
12-Slot VMEbus Logic Enclosure - Continued
| CODE |
PART # |
DESCRIPTION |
| NS |
260-3719 |
Sun-4/370 Logo |
| NS |
340-1878 |
Rear Bezel (obsolete) |
| NS |
540-1848 |
Rear Bezel |
| NS |
540-1749 |
Rear Bumper |
| 13 |
530-1480 |
Backplane to Interface PCB DC Harness |
14
NS |
501-1493
140-1019 |
Interface PCB (SCSI Bus and DC Power)
15 Amp Fuse |
| 15 |
530-1494 |
SCSI Bus Internal Command Cable, 25.4 cm |
| 16 |
340-1892 |
SCSI PCB Cover |
| 17 |
300-1047 |
925 Watt Power Supply |
| 17 |
300-1089 |
925 Watt Power Supply |
| 18 |
340-1903 |
Peripheral Tray Base |
| 19 |
501-1496 |
Peripheral Tray Interface PCB |
| 20 |
530-1498 |
Internal SCSI Bus Cable, 1.2M (obsolete) 1
|
| 20 |
530-1729 |
Internal SCSI Bus Cable, 1.2M 1
|
| 21 |
370-1230 |
327MB Disk Drive, Imprimis/CDC 77777126 |
| 21 |
370-1319 |
669MB Disk Drive, Micropolis 1588-15 |
| 21 |
370-1319 |
669MB Disk Drive, Maxtor XT-8760S |
| 22 |
530-1500 |
Internal SCSI Bus Cable, 1.2M 2
|
| 23 |
370-1206 |
150MB Tape Drive, Full-Height, QIC-150 |
| 23 |
370-1247 |
45/60MB Tape with MT02, Full-Height, QIC-11/24 |
| 23 |
370-1297 |
2.3GB 8 mm Tape Drive, Full-Height |
| 23 |
370-1205 |
150MB Tape Drive, Half-Height, QIC-150 |
| 23 |
370-1347 |
644MB CD-ROM, Half-Height |
| 24 |
530-1499 |
Peripheral Tray DC Harness |
| NS |
530-1638 |
DC "Y" Harness, Half-Height Peripherals |
| NS |
530-1249 |
External SCSI Cable, DD-50SA to DD-50SA, 1.0M |
| NS |
530-1593 |
Ext Cable, 50-Pin SCSI-2 to DD-50SA, 1.0M (obs) |
| NS |
530-1829 |
External Cable, 50-Pin SCSI-2 to DD-50SA, 1.0M |
|
800-3255 |
12-Slot Office Pedestal Field Service Manual |
- Tape only and Disk with Tape trays use Internal Cable 530-1498 or
530-1729.
- Disk only, Dual Disk, and Empty trays use Internal Cable 530-1500.

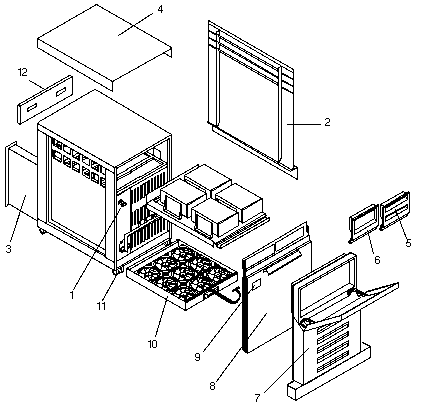

Sun-4/470
12-Slot VMEbus Logic Enclosure
| CODE |
PART # |
DESCRIPTION |
| 1 |
501-1832 |
12-Slot Backplane, Pressfit with DC Harness
Cutout |
| 2 |
540-1846 |
Side Cover |
| 3 |
300-1089 |
925 Watt Power Supply |
| 4 |
340-1898 |
Top Cover |
| 5 |
330-1192 |
Blank Bezel Insert |
| 6 |
330-1210 |
Front Bezel Half-Height Insert |
| 6 |
330-1284 |
Front Bezel Full-Height Insert |
7
NS
NS |
540-1939
240-0558
240-0557 |
Front Bezel Assembly
Miniball Receptacle
Miniball Fastener |
| 8 |
340-2291 |
Front EMI Cover, without Switch Assembly |
| NS |
340-2292 |
Blank EMI Cover Filler Panel |
| NS |
340-2444 |
Peripheral Mounting Bracket |
9
NS
NS |
540-2136
330-1373
340-2491 |
Switch Assembly
Switch
Switch Mounting Bracket |
10
NS
NS
NS |
540-1751
370-1214
530-1640
370-1732 |
Fan Tray Assembly, 9 Fans 1
DC Fan Assembly with Connector, 150 CFM
Fan Tray DC Harness for Fan 370-1732
DC Fan Assembly, 150 CFM |
| 11 |
340-2129 |
Caster |
| 12 |
340-2293 |
Rear EMI Cover |
| NS |
150-1785 |
External Active Terminator, 50-Pin SCSI-2 |
| NS |
260-3615 |
SPARCstation 470 Logo |
| NS |
260-3616 |
SPARCserver 470 Logo |
| NS |
530-1676 |
Internal SCSI Bus Cable |
| NS |
370-1319 |
669MB Disk Drive, Micropolis 1588-15 |
| NS |
370-1319 |
669MB Disk Drive, Maxtor XT-8760S |
| NS |
370-1205 |
150MB Tape Drive, Half-Height, QIC-150 |
| NS |
370-1206 |
150MB Tape Drive, Full-Height, QIC-150 |
| NS |
370-1297 |
2.3GB 8 mm Tape Drive, Full-Height |
| NS |
370-1347 |
644MB CD-ROM, Half-Height |
| NS |
370-1377 |
1.3GB Disk Drive, Seagate 976002-012/ST41600N |
| NS |
530-1675 |
Peripheral Tray DC Harness |
| NS |
530-1842 |
Grounding Cable, CD-ROM, 12.7 cm |
| NS |
530-1829 |
SCSI Cable, 50-Pin SCSI-2 to DD-50SA, 1.0M |
| NS |
540-1848 |
Rear Bezel |
| NS |
540-1749 |
Rear Bumper |
|
800-3255 |
12-Slot Office Pedestal Field Service Manual |
- The Fans are removable from 540-1751-04 and 540-1751-05 to allow access to
the fan tray screen during routine preventive maintenance.
Last updated: December 2, 1996
|
