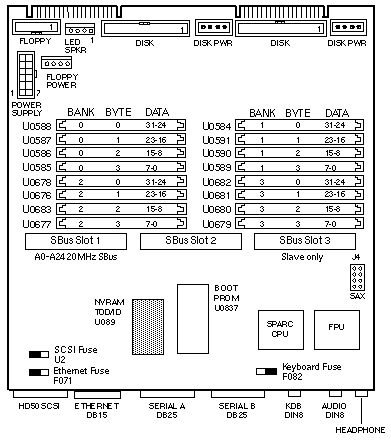

SPARCstation 1 (Sun-4/60)

<=501-1382-12 501-1382-13 >=501-1382-14
4MB w/o FPU 8MB w FPU 8MB w FPU FCC-B
<=501-1629-12 501-1629-13 >=501-1629-14
4MB w/o FPU 8MB w FPU 8MB w FPU FCC-B

Power

8MB Board with 1MB SIMMs
2.5 Amps @ +5Vdc
12.5 Watts

Notes

  1. End of Support Life for the SPARCstation1 was 7/1/95.
  2. The minimum operating system is SunOS 4.0.3c.
  3. The minimum operating system for Boot PROM 2.4 is SunOS 4.1.1.
  4. Use 1MB SIMM 501-1408-01.
  5. Use 4MB SIMM 501-1625-01 or 501-1739-01.
  6. Bug 1047696 affects the installation of SunOS 4.1.1 and 4.1.1 Rev B. If 1MB and 4MB SIMMs are mixed, install the 4MB SIMMs in Bank 0 when installing miniunix.
  7. SIMM installation order is Bank 0, Bank 2, Bank 1, Bank 3.
  8. Use 2A Fuse 150-1174.
  9. CPU >=501-1382-08 or >=501-1629-10 is required for use with Sun Common LISP, AutoCAD, Cobol, and SunOS 4.1.
  10. SPARC IU >=100-1808-02 is required for use with Sun Common LISP, AutoCAD, Cobol, and SunOS 4.1.
  11. Power on systems with CPU boards 501-1382-10 or lower, or 501-1629-10, before turning on external disk drive units.
  12. Install Load Board 501-1667 in systems without a disk drive and SBus cards.

Reference

SPARCstation 1 Installation Guide, 800-4036.
