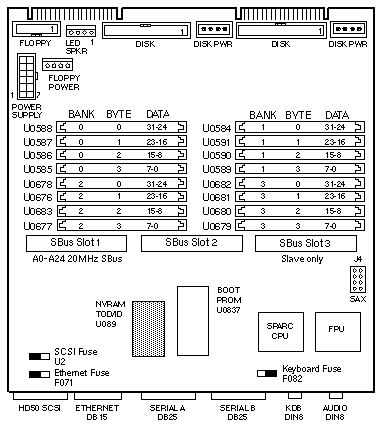

SPARCstation 1+ (Sun-4/65)

501-1632 501-1691
8MB w FPU 0MB w FPU

Power

8MB Board with 1MB SIMMs
3.0 Amps @ +5Vdc
20.0 Watts

Notes

  1. End of Support Life for the SPARCstation1+ was 11/18/96.
  2. The minimum operating system is SunOS 4.0.3c.
  3. The minimum operating system for Boot PROM 2.4 is SunOS 4.1.1.
  4. Use 1MB SIMM 501-1408-01.
  5. Use 4MB SIMM 501-1625-01 or 501-1739-01.
  6. Bug 1047696 affects the installation of SunOS 4.1.1 and 4.1.1 Rev B. If 1MB and 4MB SIMMs are mixed, install the 4MB SIMMs in Bank 0 when installing miniunix.
  7. SIMM installation order is Bank 0, Bank 2, Bank 1, Bank 3.
  8. Use 2A Fuse 150-1174.
  9. Install Load Board 501-1667 in systems without a disk drive and SBus cards.

Reference

SPARCstation 1+ Installation Guide, 800-4784.
