SPARCstation ELC (Sun-4/25)
| 501-1861 |
501-1730 |
| 0MB FRU |
8MB |

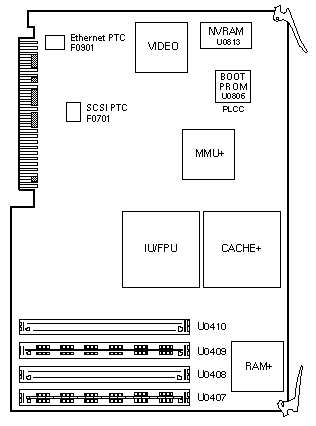

I/O Board Connectors
SIMM Installation
TOTAL
MEMORY |
MEM1
U0407 |
MEM2
U0408 |
MEM3
U0409 |
MEM4
U0410 |
| 8MB |
4MB |
|
4MB |
|
| 12MB |
4MB |
4MB |
4MB |
|
| 16MB |
4MB |
4MB |
4MB |
4MB |
| 16MB |
16MB |
|
|
|
| 20MB |
16MB |
|
4MB |
|
| 24MB |
16MB |
4MB |
|
4MB |
| 28MB |
16MB |
4MB |
4MB |
4MB |
| 32MB |
16MB |
|
16MB |
|
| 36MB |
16MB |
16MB |
4MB |
|
| 40MB |
16MB |
16M |
4M |
4MB |
| 48MB |
16MB |
16MB |
16MB |
|
| 52MB |
16MB |
16MB |
16MB |
4MB |
| 64MB |
16MB |
16MB |
16MB |
16MB |
Notes
- The minimum operating system is SunOS 4.1.1c.
- Use 4MB x 33-bit SIMM 501-1812-01 or 501-1698-01.
- Use 16MB x 33-bit SIMM 501-1822-01.
- Install the first SIMM in U0407.
- Bug 1047696 affects the installation of SunOS 4.1.1 and 4.1.1 Rev B,
if 4MB and 16MB SIMMs are mixed. Install the 16MB SIMM in U0407 when
installing miniunix.
- The fuses are not field replaceable.
Reference
- SPARCstation ELC Installation and Repair Guide, 814-5048, SunOS 4.1.1.
