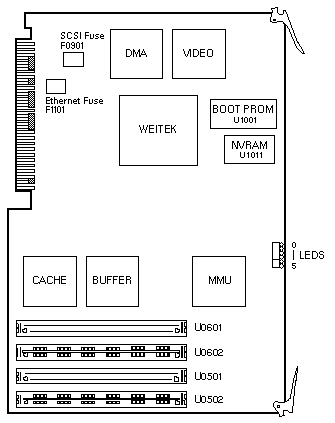

SPARCstation SLC (Sun-4/20)

501-1627 501-1680 501-1720 501-1748
8MB 0MB FRU 8MB 0MB FRU

I/O Board Connectors

Notes

  1. End of Support Life for the SPARCstation SLC was 11/18/96.
  2. The minimum operating system is SunOS 4.0.3c.
  3. Use 4MB SIMM 501-1676-01 or 501-1698-01.
  4. Install the first 4MB SIMM in U0502.
  5. The fuses are not field replaceable.
  6. CPU boards with the 53C90A SCSI Controller require a patch to operate under SunOS 4.0.3c.

References

  1. SPARCstation SLC Installation and Repair Guide, 814-5039-03, SunOS 4.1.1.
  2. SPARCstation SLC Installation and Repair Guide, 814-5043-02, SunOS 4.1.1 Rev B.

Power On Self Test Error Codes
