SS2 Memory Boards

Sun-4/75

501-1823 501-1824
Primary Memory
32MB Parity		 Secondary Memory
32MB Parity

Power:

0.8 Amps @ +5Vdc
4.0 Watts

Notes

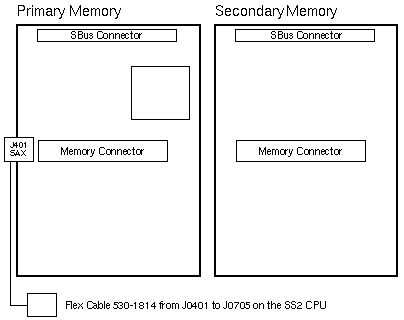

  1. Connect Flex Cable 530-1814 to J401 on the Primary Memory and to the SAX connector on the Sun-4/75 CPU.
  2. Install the Secondary Memory onto the Primary Memory.
  3. Use standoff 240-1879-01 to mount the Secondary Memory.
  4. The address range for the Primary Memory is 8000000 - 9ffffff.
  5. The address range for the Secondary Memory is A000000 - Bffffff.

Reference

Installing and Testing SPARCstation 2 Memory Boards, 800-6058-11.
