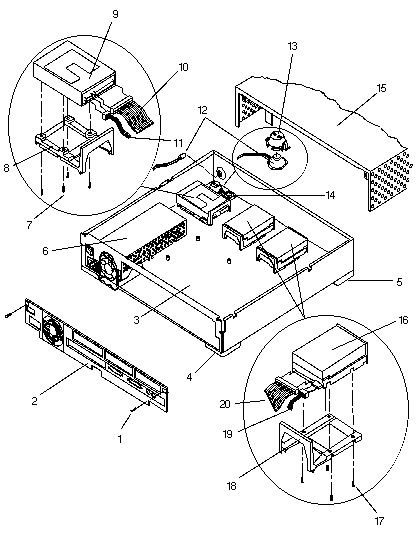

| CODE |
PART # |
DESCRIPTION |
| 1 |
240-1761 |
#8 x 1/2" Screw (obsolete) |
| 1 |
240-1894 |
#8 x 1/2" Screw |
| 2 |
330-1168 |
Rear Panel Assembly |
3
NS
4
5 |
540-2071
230-1140
330-1427
330-1167 |
Base Assembly
 LED Mounting Clip
Front Foot
Rear Foot |
| 6 |
300-1038 |
85 Watt Power Supply |
| 7 |
240-1878 |
#6-32 x 5/16" Screw |
| 8 |
330-1242 |
Floppy Drive Mounting Bracket |
| NS |
340-2450 |
Floppy Drive Filler Panel |
| NS |
330-1344 |
Floppy Drive Foam Gasket |
| 9 |
370-1207 |
3.5" Floppy Disk Drive, Dual Density |
| 9 |
370-1420 |
3.5" Floppy Disk Drive, Triple Density |
| 10 |
530-1452 |
Floppy Drive Command Cable |
| 11 |
530-1679 |
Floppy Drive Power Cable |
| 12 |
540-2072 |
Speaker and LED Assembly |
| 13 |
330-1165 |
Speaker Housing |
14
|
540-2264
340-1422
540-1802 |
DC Fan Assembly 1
Fan Cover 1
DC Fan Assembly |
15
NS
NS |
540-1993
230-1242
260-4439 |
Top Cover Assembly
Tinnerman Clip
SPARCstation 2 Nameplate |
| 16 |
370-1327 |
207MB Disk Drive |
| 16 |
370-1392 |
424MB Disk Drive, Seagate ST1480N |
| 16 |
370-1684 |
535MB Disk Drive, Conner CP30540 |
| 16 |
370-1843 |
535MB Disk Drive, Seagate ST5660N |
| 16 |
370-1546 |
1.05GB Disk Drive, Seagate ST11200N |
| 16 |
370-1710 |
1.05GB Disk Drive, Seagate ST31200N |
| 16 |
370-1963 |
1.05GB Disk Drive, Conner CFP1080S |
| 16 |
370-1709 |
2.1GB Disk Drive, Seagate ST12400N |
| 16 |
370-1929 |
2.1GB Disk Drive, Conner CFP2105S |
| 16 |
370-2070 |
2.1GB Disk Drive, Seagate ST32430N |
| 17 |
240-1878 |
#6-32 x 5/16" Screw |
| 18 |
330-1343 |
Disk Drive Mounting Bracket |
| 19 |
530-1453 |
DC Power Harness |
| 20 |
530-1451 |
Disk Command Cable |
| NS |
530-1594 |
Audio Cable, Mini-Din to Mini-Jack |
|
800-5166 |
SPARCstation 2 Field Service Manual |
