Netra[tm] ct 400 Server

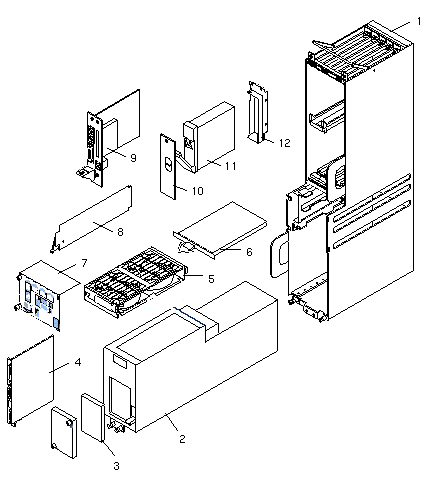

5-Slot cPCI Logic Enclosure

Table Legend

[F] = Field Replaceable Unit (FRU)

CODE	PART #	DESCRIPTION
1 - -	540-4569 [F] 501-5621 501-5625	5-Slot cPCI Drawer Assembly/FRU 5-Slot cPCI Backplane Extension Board for Front CPU Termination Board
2 3	300-1445 [F] 250-1594	360 Watt DC Input Power Supply Type D128 Power Supply Air Filter, Option 7182
4	501-5624 [F]	Front CPU Transition Board
5	540-4394 [F]	Fan Tray (-08 required for hot swap)
6	370-4080	Air Filter, Option 7162
7	540-4451 [F]	System Status Panel
8	501-5612 [F]	System Control Board
9	540-4406 [F]	Alarm Board
10	340-6394	Disk Drive Slot Cover
11 11 11	540-4401 [F] 540-4520 [F] 540-4689 [F]	18.2GB 10000 RPM Disk Drive Assembly/FRU 36.4GB 10000 RPM Disk Drive Assembly/FRU 36.4GB 10000 RPM NEBS Disk Drive Assembly/FRU
12	540-4398 [F]	Disk Drive Bracket
	806-3296	Netra ct Server Service Manual

Boards

PART #	DESCRIPTION
501-5209 [F] 540-4349 [F] 501-5388 [F] 370-4096 540-4350 [F] 501-5389 [F]	128MB Memory Board FRU 256MB Memory Board Assembly/FRU 256MB Memory Board FRU 256MB Memory Board 512MB Memory Board Assembly/FRU 512MB Memory Board FRU
501-5731 [F] 501-5473 [F] 501-5795 501-5796 501-5800 [F]	0MB 440MHz CP1500 CPU with Front Panel FRU 0MB 440MHz CP1500 CPU with Front Panel 128MB 440MHz CP1500 CPU with Front Panel 512MB 440MHz CP1500 CPU with Front Panel 1GB 440MHz CP1500 CPU with Front Panel
340-6483	6U cPCI Slot Filler Panel
501-5609 [F] 501-5945 [F]	Rear CPU Transition Board, Netra ct 400/800 Rear CPU Transition Board, Netra ct 400/800
501-5619 [F]	Shunt Board, Slot 1 to Slot 2, Netra ct 400/800
