Sun Fire[tm] 3800 Server - Full Components List

Boot PROM
Centerplane
Communication
Ethernet
Fan
Fibre Channel
I/O
Memory
    Miscellaneous
Power
Rack
SCSI
System Board
System Controller Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Manufacturing
Part #
Patch
n/a 112883
Centerplane
Option # Top Level
Part #(s)
Manufacturing
Part #(s)
Description Substitute
Part #(s)
n/a n/a 501-5569 [F] System LED Board n/a
n/a n/a 501-5465
2 Slot Centerplane (Factory Installed) 501-5876 [F]
501-5876 [F] 2 Slot Centerplane (FRU) n/a
Communication
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1266A 595-5308 501-5483 [F] Compact PCI (cPCI) SunATM 155 MMF NIC n/a
X1268A 595-5309 501-5564 [F] Compact PCI (cPCI) SunATM 622 MMF NIC n/a
Ethernet
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1234A 595-5307 501-5502 [F] Compact PCI (cPCI) QuadFastEthernet (QFE) n/a
X1261A 595-5310 501-5523 [F] Compact PCI (cPCI) Gigabit Ethernet * n/a
* - Although this card has the name "Gigabit", it uses the Gigaswift driver (ce).
Fan
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X4323A 595-5730 540-4193 [F] Fan Tray n/a
Fibre Channel
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X6748A 595-5715 375-0118 [F] Compact PCI (cPCI) Dual Channel FC n/a
I/O
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X4040A 595-5381 540-4591 [F] Compact PCI (cPCI) I/O Assembly (6 slot) n/a
Memory
Option # Top Level
Part #
Manufacturing
Part #
Option Description Previous
Part #
Substitute
Part #
X7051A 595-5727 501-5030 [F] (512MB) 2 GB (4 512MB SDRAM DIMMs) 540-5085 n/a
X7053A 595-5729 501-5401 [F] (256MB) 1 GB (4 256MB SDRAM DIMMs) 540-5084 n/a
X7056A 595-6186 540-5086 [F] (1GB) * 4 GB (4 1GB SDRAM DIMMs) n/a 501-6109 [F]
n/a n/a 501-6109 [F] (1GB) * 1GB SDRAM DIMM n/a 540-5086 [F]
For Sun Fire 3800-6800, 1GB DIMMs 501-6109 and 540-5086 are only supported on 900MHz and faster system boards.
Miscellaneous
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 540-4523 [F] Sun StorEdge D240 Mediatray n/a
Power Supply
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X4303A 595-5393 300-1441 [F] * A145, AC-48VDC Power Supply n/a
XRK-F3800E 595-6210 300-1529 [F] * A145E, AC-48VDC Power Supply n/a
* - 300-1529 is the FRU for EMEA and APAC, except Japan. 300-1441 is the FRU for Americas, EMEA (for systems shipped before October 2001), and Japan.
- Power supply 300-1529 (A145E) requires ScApp 5.12.5 or higher (Patch 112127).
Rack
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
SF-CAB n/a SF-CAB Sun Fire Cabinet n/a
X4347A 595-5721 340-6728
540-4857
540-4857
540-4674
Kickplate Extension
Right Extension
Left Extension
Top Extension
n/a
SCSI
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1232A 595-5306 501-5570 [F] Compact PCI (cPCI) Single Ended UltraSCSI + 10/100 Ethernet n/a
X6749A 595-5716 375-0119 [F] Dual Differential Ultra SCSI (cPCI) n/a
System Board
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X4006A 595-6177 540-5051 [F] Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 900MHZ 0MB n/a
X4007A 595-6178 540-5052 [F] Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ 0MB n/a
X4004A 595-5481 540-4729 [F] Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III 750MHZ 0MB n/a
X4005A 595-5478 540-4730 [F] Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III 750MHZ 0MB n/a
XCPUBD-2-1050-CDP 595-6846 540-5623 [F] Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 0MB Memory n/a
XCPUBD-4-1050-CDP 595-6311 540-5267 [F] Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 0MB Memory n/a
XCPUBD-221-1050 595-6779 540-5271 Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 2GB Memory 540-5623 [F]
XCPUBD-222-1050 595-6780 540-5272 Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 4GB Memory 540-5623 [F]
XCPUBD-224-1050 595-6781 540-5273 Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 8GB Memory 540-5623 [F]
XCPUBD-441-1050 595-6782 540-5274 Sun Fire CPU/Memory Uniboard with 4UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 4GB Memory 540-5267 [F]
XCPUBD-481-1050 595-5275 540-5275 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 8GB Memory 540-5267 [F]
XCPUBD-481-1050-C 595-6588 540-5475 Capacity On Demand (COD) Uniboard bundle with 4 unlicensed UltraSPARC III CU 1050MHz, 8MB Ecache, & 8GB Memory. Note: COD Right-To-Use (RTU) licenses must be ordered separately to activate. 540-5267 [F]
XCPUBD-482-1050 595-6312 540-5268 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 16GB Memory 540-5267 [F]
XCPUBD-484-1050 595-6313 540-5269 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 1050MHz, 8MB Ecache each, & 32GB Memory 540-5267 [F]
XCPUBD-2029 595-6179 540-4984 Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 900MHZ, 8MB Ecache each, & 2GB Memory 540-5051 [F]
XCPUBD-2049 595-6200 540-5094 Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 900MHZ, 8MB Ecache each, & 4GB Memory 540-5051 [F]
XCPUBD-2089 595-6201 540-5095 Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III Cu 900MHZ, 8MB Ecache each, & 8GB Memory 540-5051 [F]
XCPUBD-4049 595-5985 540-4934 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ, 8MB Ecache each, & 4GB Memory 540-5052 [F]
XCPUBD-F4089 595-6190 540-4992 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ, 8MB Ecache each, & 8GB Memory 540-5052 [F]
XCPUBD-F4089-C 595-6587 540-5474 Capacity On Demand (COD) Uniboard bundle with 4 unlicensed UltraSPARC III CU 900MHz, 8MB Ecache, & 8GB Memory. Note: COD Right-To-Use (RTU) licenses must be ordered separately to activate. 540-5052 [F]
XCPUBD-F4169 595-6191 540-4990 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ, 8MB Ecache each, & 16GB Memory 540-5052 [F]
XCPUBD-F4329 595-6192 540-4993 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III Cu 900MHZ, 8MB Ecache each, & 32GB Memory 540-5052 [F]
SF-XCPUBD-227 n/a 540-4830 Sun Fire CPU/Memory Uniboard with 2 UltraSPARC III 750MHZ & 2GB Memory 540-4729 [F]
SF-XCPUBD-447 n/a 540-4829 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III 750MHZ & 4GB Memory 540-4730 [F]
SF-XCPUBD-487 n/a 540-4832 Sun Fire CPU/Memory Uniboard with 4 UltraSPARC III 750MHZ & 8GB Memory 540-4730 [F]
System Controller Board
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 501-5563 [F] System Controller Board n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

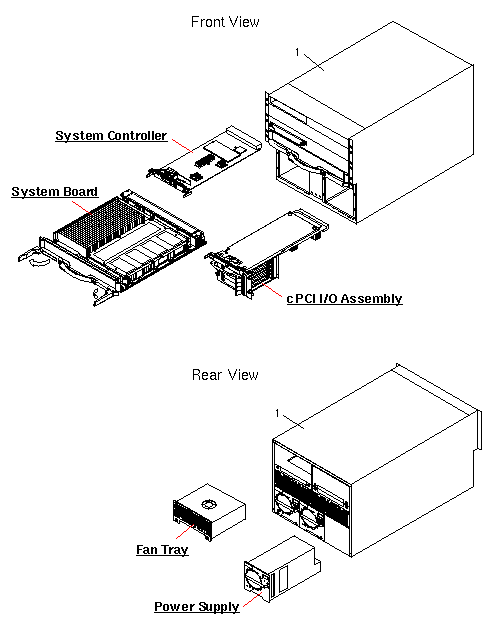

Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1 540-4190
340-5890
340-5896
340-6168
501-5569
Chassis Assembly
Main Chassis
Sub Chassis
Lower Chassis Bulkhead
LED Assembly
NS 180-1943 [F] AC Input Power Cable (North American, Asian)
NS 180-1944 [F] AC Input Power Cable (International)
NS 180-1949 [F] Y Split AC Power Cable, 3M (Option X319YA)
NS 330-2014 [F] AC Power Key / Door Key
NS 330-2821 [F] System Board Filler Panel (install when servicing)
NS 330-3155 [F] I/O Assembly Filler Panel (install when servicing)
NS 530-1351 [F] Power Cable, 2m, IEC-320-c13 to NEMA 6-15p, 10A/250V, Option X320A
NS 530-1869 [F] Serial Breakout Cable 25M to 25F, 25F
NS 540-4040 [F] CPU/Memory Board Filler Board
NS 540-4246 [F] Power Supply Filler Panel
NS 540-4347 [F] Fan Tray Filler Panel
NS 540-4446 [F] cPCI Card Filler Panel
NS 540-4562 System Controller Filler Board
