Seagate ST320011A (20.1/20.4GB)

3 1/2" 7200 RPM Ultra ATA/100

A21 / A22 / A36

Option 6174

370-4327-02	370-4327-03	370-5560
Barracuda ATA IV Snowmass 20.1GB Firmware 3.10 Configuration SDE-04	Barracuda ATA IV Snowmass 20.1GB Firmware 3.19 Configuration SDE-05	Barracuda ATA IV Snowmass 20.4GB Firmware 3.10 Configuration SDE-03

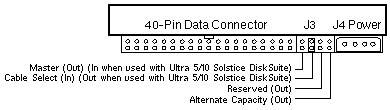

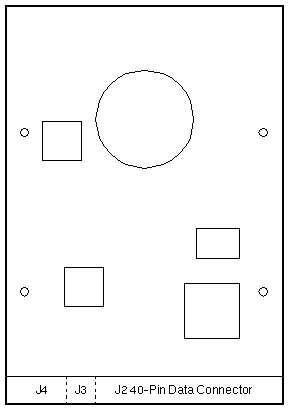

Bottom View End View

Notes:

1. This drive was added as an alternate source in January 2002.
2. The A36 Latch Cover was modified to fit this drive in January 2002.
3. Either a Floppy or a front Disk Drive can be installed in the Ultra 5.
4. The Ultra 5 front Disk Mounting Bracket replaces the Floppy Bracket.
5. The Ultra 5 front Disk Mounting Bracket has no Sun part number.
6. The Ultra 10 primary/rear drive requires Mounting Bracket 370-3721.
7. The capacity is listed as 20.0GB in Seagate Product Manual 110129212.

References

1. Ultra 5/10 Service Manual, 805-0423.
2. Ultra 5 Service Manual, 805-7763.
3. Ultra 10 Service Manual, 805-7764.
4. Ultra 5/10 CD-ROM and Hard Drive Installation Guide, 805-3085.
5. Ultra 5/10 CD-ROM and Hard Drive Installation Guide, 805-7115.
