Seagate ST320414A (20.1GB)

3 1/2" 7200 RPM Ultra ATA/100

A21 / A22 / A36

Option 6174

370-4327
Barracuda ATA III Aspen

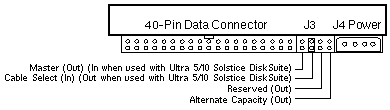

Bottom View End View

Notes

1. This drive was added as an alternate source in April 2001.
2. Either a Floppy or a front Disk Drive can be installed in the Ultra 5.
3. The Ultra 5 front Disk Mounting Bracket replaces the Floppy Bracket.
4. The Ultra 5 front Disk Mounting Bracket has no Sun part number.
5. The Ultra 10 primary/rear drive requires Mounting Bracket 370-3721.

References

1. Ultra 5/10 Service Manual, 805-0423.
2. Ultra 5 Service Manual, 805-7763.
3. Ultra 10 Service Manual, 805-7764.
4. Ultra 5/10 CD-ROM and Hard Drive Installation Guide, 805-3085.
5. Ultra 5/10 CD-ROM and Hard Drive Installation Guide, 805-7115.
